Angle Valves

Item Number : VG-1175Y

Angle Valves are indispensable components in pipeline systems, finding application as reliable shut-off valves in a variety of scenarios, including water supply, household drinking systems.

Size and Shape:

These Angle Valves are available in a standard size of 1/2″ x 1/2″. The compact and convenient size of these valves allows for easy integration into different pipeline systems.

Threads:

Angle Valves are equipped with a connection thread that adheres to the ISO 228 standard. This threading design ensures a secure and standardized connection, making it easier to install and maintain.

Temperature and Pressure Ranges:

These valves are designed to operate within a temperature range spanning from -20°C to +60°C. Angle Valves can withstand a pressure of up to 10 MPa (megapascals), making them well-equipped to handle the demands of both domestic and industrial systems.

Angle Valves are essential components in pipeline systems, serving as dependable shut-off valves in various applications such as water supply, household drinking systems, and heating. These valves are purposefully designed to transport non-aggressive media, ensuring compatibility with the materials used in their construction. Whether installed in domestic or industrial environments, Angle Valves play a pivotal role in regulating fluid flow while safeguarding the integrity of the system.

These Angle Valves are standardized at a size of 1/2″ x 1/2″, combining a compact form with a right-angled configuration. This design allows for easy integration into different pipeline systems, particularly in confined spaces or at pipeline bends where straight valves may prove less practical. Their space-saving shape enhances their versatility, making them a preferred choice for diverse installations.

Angle Valves feature connection threads that conform to the ISO 228 standard. These threads ensure a secure and consistent connection, simplifying the installation and maintenance processes. The utilization of these threads guarantees a leak-free and reliable performance, facilitating seamless integration into various piping systems. In addition, these valves can operate efficiently within a temperature range from -20°C to +60°C, making them suitable for a wide range of environmental conditions. Their impressive pressure resistance of up to 10 MPa equips them to meet the demands of both domestic and industrial systems, ensuring their durability and reliability in situations where precise fluid flow regulation is critical.

Specifications

MaterialLead,BrassValve TypeBall Valve
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH2.5 x 0.75 x 0.75 inchesNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleButterfly

Video

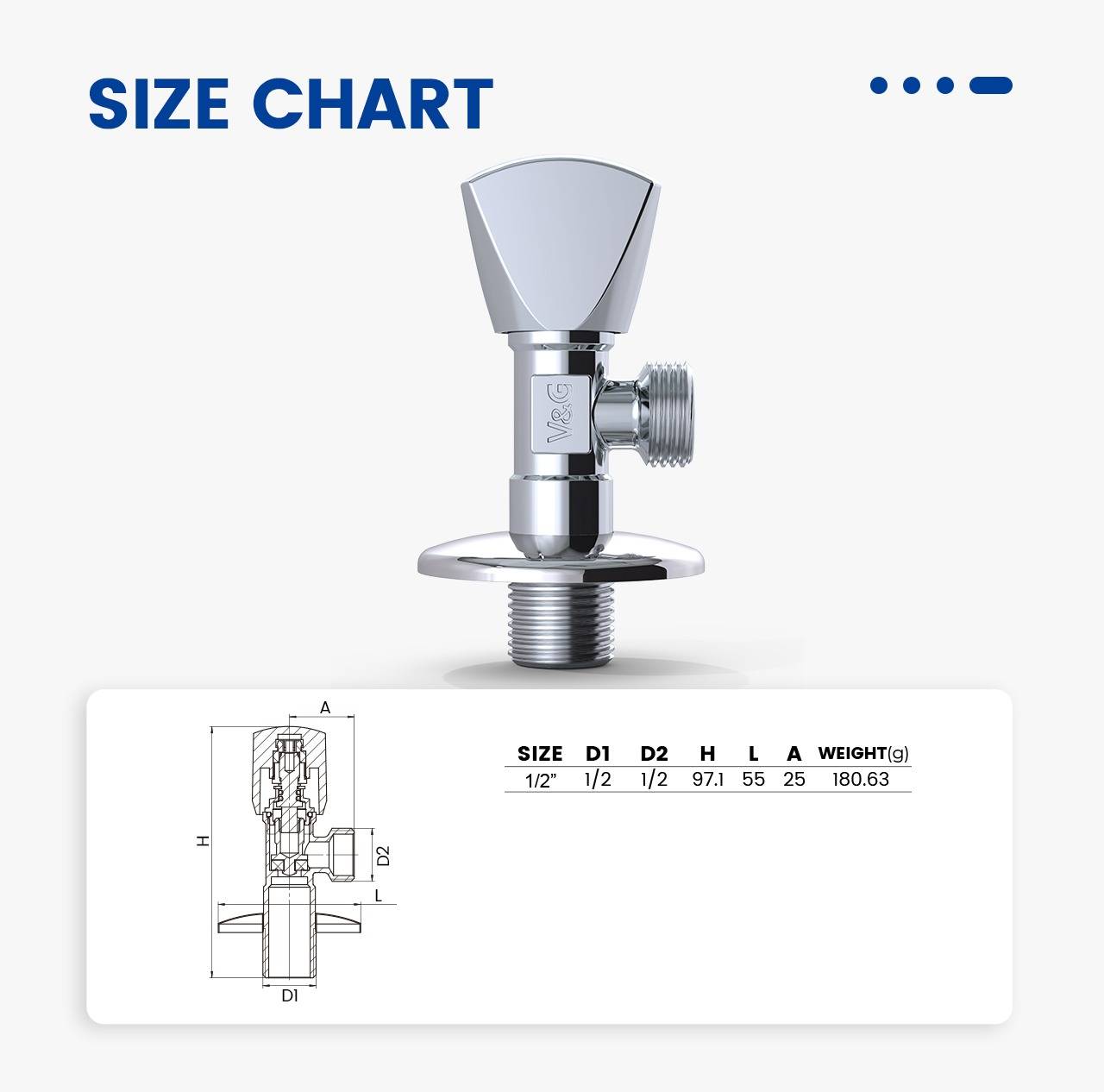

Drawing

Catalog

Packaging Details

Vendor CodeSizeWeightQty per boxQty per packAvailabilityQty per pack
VG-1011011/2"16328 pcs.-in stock50
VG-101333/4"16328 pcs.-in stock50
VG-101331"16328 pcs.-in stock
VG-1013311/4"16328 pcs.-in stock
VG-1013311/2"16328 pcs.-in stock
VG-10133216328 pcs.-in stock
