Wras Approved Brass Ball Valve

Item Number : VG-88881

A ball valve serves as a critical component in pipeline systems, primarily functioning as a shut-off valve. Its versatile design caters to various applications, notably in water supply systems.

Specifications:

  •  Sizes Available: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, and 2″ inches.
  • Thread Type: Female-Female (FxF) connection, ensuring a secure and leak-free joint.
  • Temperature Range: Suitable for operations spanning from -20°C to +120°C.
  • Pressure Handling: Capable of accommodating normal pressures up to 2.5 megapascals (MPa).

A ball valve serves as an important component within pipeline systems, primarily functioning as a shut-off valve. It finds utility in a variety of applications such as water supply, household drinking water, and heating systems. Its design is suited for the transportation of non-corrosive media that won’t harm the materials of the valve. With its versatile application and sturdy construction, the ball valve plays a crucial role in regulating fluid flow in pipelines.

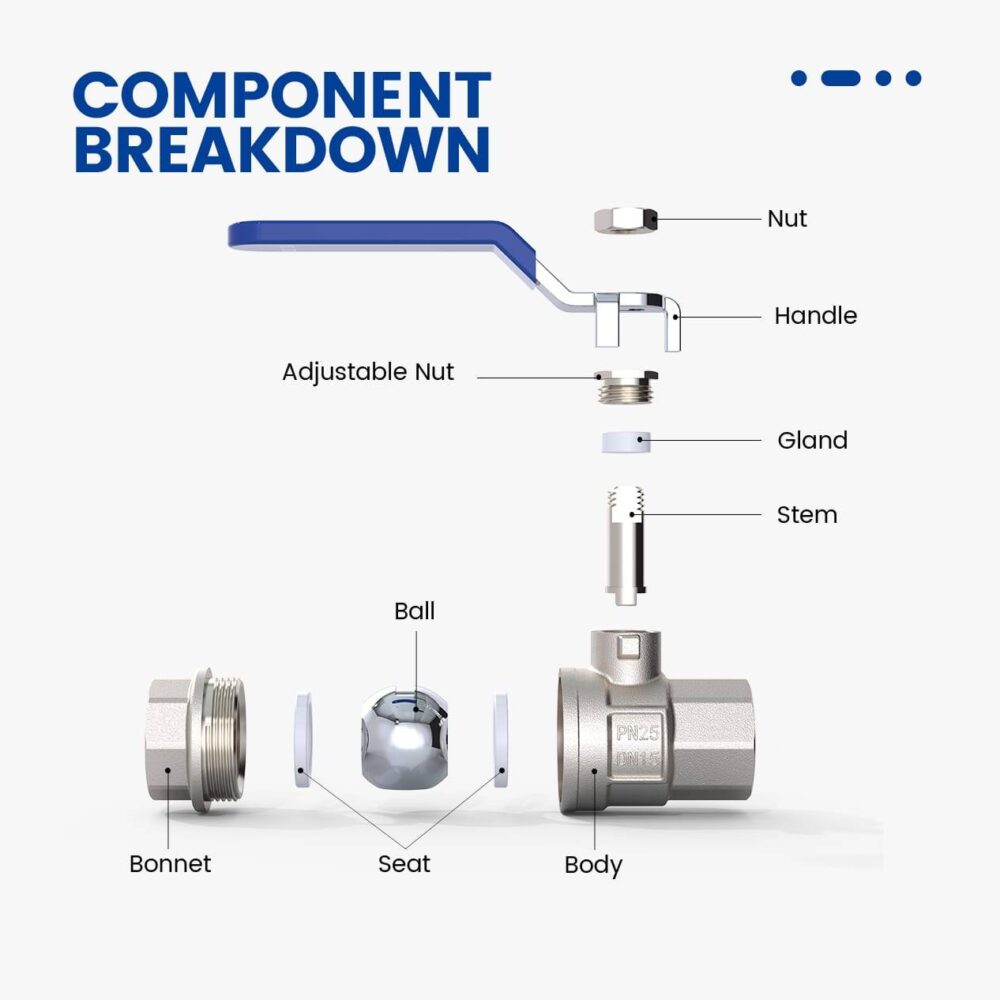

The ball valve comes in various sizes, ranging from 1/2″ to 2″ inches, ensuring compatibility with a wide array of pipe dimensions. Its cylindrical body encases a spherical, ball-like structure, which can be rotated to manage fluid flow. It is equipped with a Female-Female thread (FxF) connection, a common choice for pipe connections, providing a secure and leak-resistant joint for easy installation and maintenance.

Regarding temperature and pressure, the ball valve is designed to operate within a temperature range of -20°C to +120°C, accommodating both cold and hot fluid transport applications. It can effectively handle normal pressures of up to 2.5 megapascals (MPa), making it reliable in various pressure conditions. It’s important to note that this valve is specifically designed for use with non-corrosive media to prevent material degradation. Highly corrosive substances may not be suitable for use with this valve.

Specifications

MaterialLead,BrassValve TypeBall Valve
BrandMidline ValveWorking mediumWater
Size1/2″, 3/4″, 1″, 1-1/4″Nominal pressure:2.5 MPa
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female-Female thread (FxF)
Specification:DN15/20/25/32/40/50/65/80HandleLever

Video

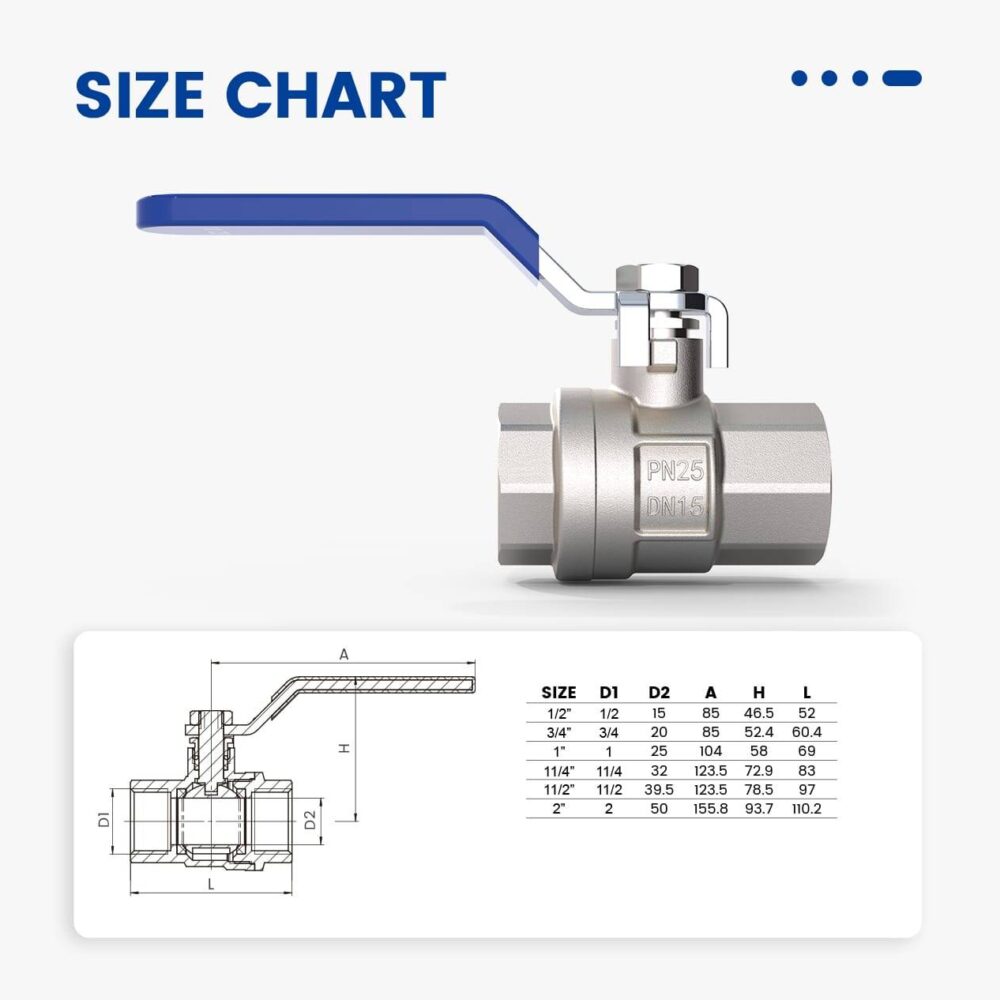

Drawing

Catalog

Packaging Details

Vendor CodeSizeWeightQty per boxQty per packAvailabilityQty per pack
VG-1011011/2"16328 pcs.-in stock50
VG-101333/4"16328 pcs.-in stock50
VG-101331"16328 pcs.-in stock
VG-1013311/4"16328 pcs.-in stock
VG-1013311/2"16328 pcs.-in stock
VG-10133216328 pcs.-in stock
