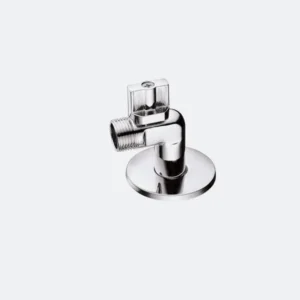

Brass Angle Valve

Item Number : ART.VG14.90551

This product is suitable for use in water and sanitary systems. It is available in two sizes and features chrome-plated zinc alloy handles and a brass body.

Size and Shape:

This product is available in two different sizes, 1/2″x3/8″ and 1/2″x1/2″. The handle is made of chrome-plated zinc alloy, while the body is made of chrome-plated brass. The stainless steel rosette adds durability and longevity to the product.


The product features threads that conform to the ISO 228 standard, which is equivalent to DIN EN ISO 228 and BS EN ISO 228. This standard ensures compatibility with a wide range of piping systems.

Temperature and Pressure Range:

The product is suitable for use in piping water systems and sanitary systems and can operate at temperatures ranging from 0°C to 80°C. It has a working pressure of PN10, making it suitable for use in a wide range of applications.

+86 576 8742 8589

Quick Dispatch & Fast Delivery

MaterialLead,BrassValve TypeAngle Valves
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH1/2″x3/8″ and 1/2″x1/2″Nominal pressure:PN10
Exterior FinishBrassWorking Temperature:0°C to 80°C
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Male, Thread,apply to GB/T12230 standard
