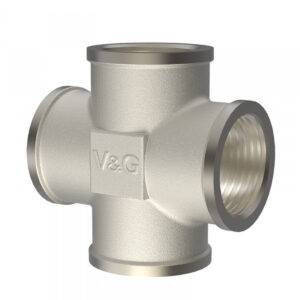

Crosshead fitting (Gulf)

Item Number : VG.211101

The Crosshead fitting is a key component used in plumbing systems to facilitate water distribution and redirect the flow in different directions. Its primary purpose is to enable the efficient and controlled movement of water within the plumbing network.

Size and Shape:

The Crosshead fitting comes in various sizes and shapes to accommodate different plumbing system requirements. The specific size of the fitting depends on the application and the dimensions of the pipes it is intended to connect.

Threads:

The Crosshead fitting features male threads, specifically designed as -G type threads. These threaded joints are crucial for the installation of piping systems, allowing for secure connections with other plumbing components.

Temperature and Pressure Range:

The provided information does not specify the exact temperature and pressure range for the Crosshead fitting. To ensure its proper operation and compatibility with the plumbing system, it is important to refer to the manufacturer’s specifications or consult relevant industry standards.

MaterialLead,BrassValve TypeCrosshead fitting
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxHMediumNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleNo Handle
