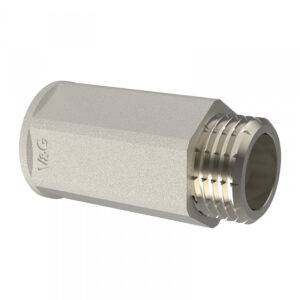

Extension FxM (Gulf)

Item Number : VG.210201

The Extension FxM fitting is a vital component used in plumbing systems to facilitate the distribution of water and redirect its flow. It is specifically designed to extend the length of a pipe and change the water’s direction as required.

Size and Shape:

The Extension FxM fitting is available in different sizes and shapes to accommodate the specific needs of plumbing systems. The size of the fitting depends on the diameter of the pipe it needs to extend and connect.

Threads:

The Extension FxM fitting utilizes male threads on one end and female threads on the other. The male thread conforms to the -G standard, ensuring compatibility with other plumbing components that adhere to the same thread specification.

Temperature and Pressure Range:

However, it is important to consider these factors during the selection and installation process. Manufacturers typically provide guidelines and specifications regarding the recommended temperature and pressure range in which the fitting can safely operate.

The Extension FxM fitting is an essential component used in plumbing systems to facilitate the distribution of water and redirect its flow. Its primary purpose is to extend the length of a pipe and change the direction of water as required. This fitting is commonly employed in residential, commercial, and industrial applications to ensure the smooth operation of the water supply.

The Extension FxM fitting comes in various sizes and shapes to accommodate different pipe dimensions and installation requirements. The size of the fitting depends on the diameter of the pipe it needs to extend and connect. It features female threads on one end and male threads on the other, allowing for secure connections with corresponding male-threaded and female-threaded components.

Threaded joints are integral to the installation of the Extension FxM fitting. It utilizes male threads on one end and female threads on the other. The male threads are designed according to the -G standard, ensuring compatibility with other plumbing components that adhere to the same thread specification. The female threads provide a secure and reliable connection with a corresponding male-threaded pipe or fitting. The threads of the fitting comply with the ISO 228 standard, which is equivalent to recognized standards such as DIN EN ISO 228 and BS EN ISO 228. This standardization ensures ease of installation and compatibility with a wide range of plumbing components.

Specifications

MaterialLead,BrassValve TypeBall Valve
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH2.5 x 0.75 x 0.75 inchesNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleButterfly
