Item Number : VG.205101

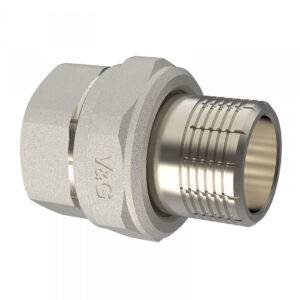

The Straight Union with O-ring Fitting is a vital component used in water distribution systems to facilitate the redirection of water flow and ensure efficient distribution to different areas within a piping system.
The Straight Union with O-ring Fitting typically features two male threaded ends that allow for easy connection to corresponding female threaded pipes or fittings. Its design enables a straight-line connection, providing flexibility in directing water flow.
The male thread of the fitting is specified as -G, adhering to the ISO 228 standard. This thread type is equivalent to DIN EN ISO 228 and BS EN ISO 228, ensuring compatibility with other components that meet the same thread specifications.
Constructed from CW617N material, the Straight Union with O-ring Fitting exhibits excellent corrosion resistance and durability. This material choice allows the fitting to withstand the demands of water distribution systems.
The Stright Union with O-ring Fitting is an essential component used in water distribution systems to change the direction of water flow and ensure efficient distribution to various areas. It is designed for threaded joints, allowing for easy installation in piping systems. The fitting is typically made of CW617N material, known for its corrosion resistance and durability. With its male threaded ends specified as -G, it conforms to the ISO 228 standard, which is equivalent to DIN EN ISO 228 and BS EN ISO 228, ensuring compatibility with other components with the same thread type.
In terms of size and shape, the Straight Union with O-ring Fitting consists of two male threaded ends, enabling it to connect with corresponding female threaded pipes or fittings. This configuration allows for a straight-line connection, making it suitable for redirecting water flow in a straight path. The threaded design ensures a secure and reliable connection, preventing leaks or disconnections in the piping system.
The material used in the Stright Union with O-ring Fitting, CW617N, offers excellent resistance to corrosion, making it suitable for water distribution systems. It withstands the demands of different water conditions and provides long-lasting performance. Additionally, the fitting is designed to operate within a specific temperature and pressure range. While the exact range may vary depending on the manufacturer, it is important to consult the specifications provided to ensure proper functionality and to prevent any damage to the fitting or the piping system.
|Material||Lead,Brass||Valve Type||Ball Valve|
|Brand||Midline Valve||Working medium||Water|
|Item Dimensions LxWxH||2.5 x 0.75 x 0.75 inches||Nominal pressure:||MOP5|
|Exterior Finish||Brass||Working Temperature:||-20 c|
|Inlet Connection Type||Full port||Material:||Brass|
|Specification Met||CSA||Thread:||Female Thread,apply to GB/T12230 standard|
