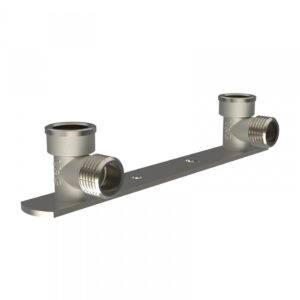

Template 2 Backplate Elbows FxM (Gulf)

Item Number : VG.212202

The Template with 2 Backplate Elbows FxM Fitting plays a vital role in water distribution systems by allowing the redirection of water flow and changing its direction. It is specifically designed for use in threaded joints, making the installation of piping systems efficient and hassle-free.

Size and Shape:

The Template with 2 Backplate Elbows FxM Fitting is available in various sizes to accommodate different piping system requirements. The specific dimensions of the fitting will depend on the application and the diameter of the pipes it needs to connect.

Threads:

With its male threads of -G type, the Template with 2 Backplate Elbows FxM Fitting ensures compatibility with corresponding female threads. These threaded connections play a crucial role in securing the fitting in place and preventing leaks.

Temperature and Pressure Range:

The Template with 2 Backplate Elbows FxM Fitting, constructed from CW617N material, exhibits excellent resistance to temperature and pressure variations. The specific temperature and pressure range that the fitting can handle will depend on environmental factors and the characteristics of the fluid being transported.

MaterialLead,BrassValve TypeTemplate 2 Backplate
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH2.5 x 0.75 x 0.75 inchesNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Male Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleNo Handle
