DVGW GAS BALL VALVE, FULL FLOW, FEMALE-MALE

The gas ball valve described here is designed for installation in both family and industrial gas systems. It is a reliable choice that meets the necessary safety requirements with its CE approval, DVGW approval, and compliance with the EN331 standard.

Size and Shape:

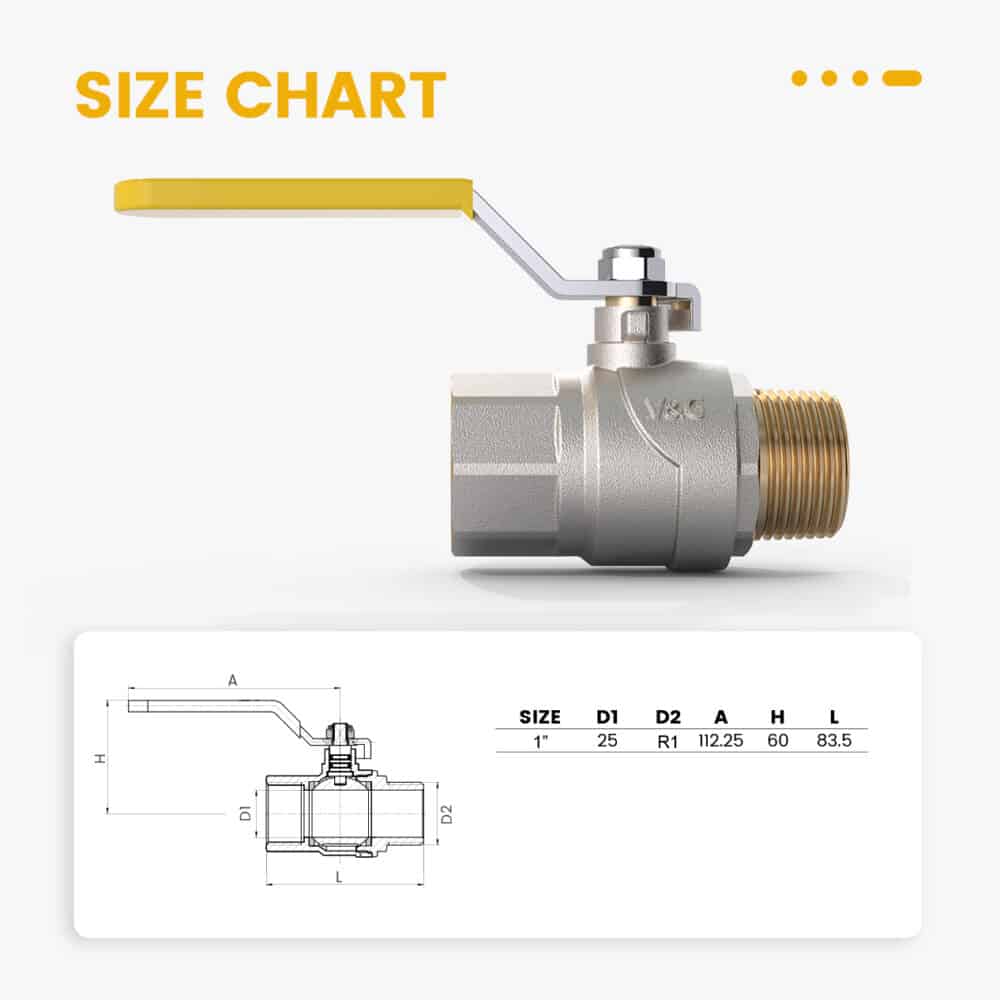

The gas ball valve is available in a size range from 1/4″ to 2″, providing versatility to accommodate various installation needs. This range allows for flexibility in fitting the valve into different gas system configurations, whether for residential or industrial purposes.

 Threads:

The gas ball valve supports both female and male threads, enabling easy installation and connection with other gas system components. It offers two types of standardized female threads: ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1) and ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

Temperature and Pressure Range:

It can effectively handle working temperatures as low as -20°C and as high as 60°C, ensuring reliable performance even in extreme weather conditions. In terms of pressure, the valve is rated for MOP5 (maximum operating pressure 5).

Email Us?

sales62@valogin.com

Whatsapp

+86 158 88600153

Need help?

+86 576 8742 8589

Quick Dispatch & Fast Delivery

The Gas ball valve described here is suitable for installation in both family and industrial gas systems. It comes in sizes ranging from 1/4″ to 2″ and has been approved with CE and DVGW certifications, while also complying with the EN331 standard. This valve is designed to provide full flow capability, ensuring efficient gas flow control while meeting safety requirements.

The Gas ball valve features both female and male threads, allowing for easy installation and connection with other components of the gas system. It supports standardized female threads, including ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1) and ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228). These threads ensure compatibility with a wide range of fittings, facilitating seamless integration and reducing the risk of leaks. Additionally, the valve supports standardized male threads, including ISO 7/1 R taper (equivalent to DIN EN 10226-1 and BS EN 10226-1) and ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228). This comprehensive thread compatibility allows for easy installation and connection options for various gas system configurations.
