DVGW GAS BALL VALVE, FULL FLOW, LEAVER HANDLE (MxM)

The gas ball valve described is designed for installation in both family and industrial gas systems. It has received CE and DVGW approvals, signifying its compliance with safety standards.

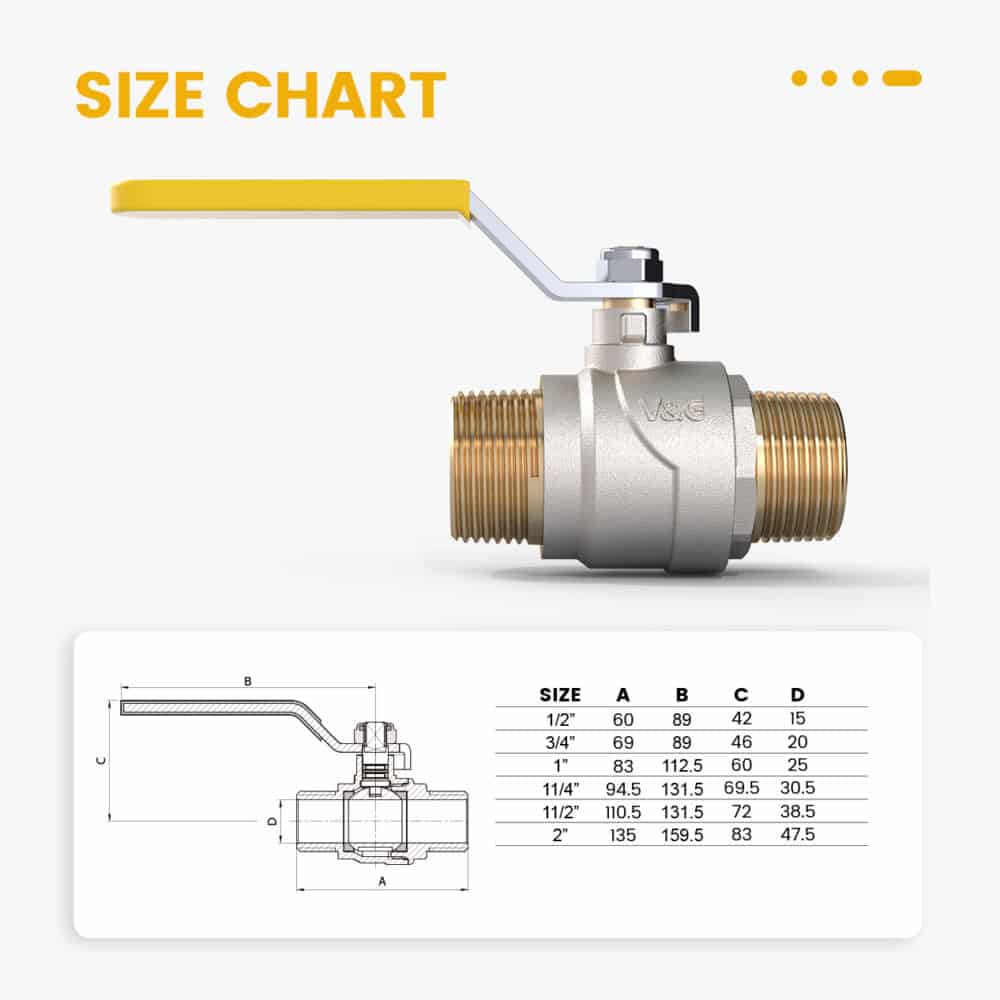

Size and Shape:

The gas ball valve is available in a size range from 1/4″ to 2″, providing flexibility for various installation requirements. It has a well-designed shape that optimizes space utilization, allowing for easy integration into the gas system. The valve’s compact design facilitates convenient installation and efficient gas flow control.

Threads:

The gas ball valve features male threads, which allow for easy connection with other components in the gas system. It supports two types of standardized male threads: ISO 7/1 R taper (equivalent to DIN EN 10226-1 and BS EN 10226-1) and ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

Temperature and Pressure Range:

The gas ball valve is designed to operate within a working temperature range of -20°C to 120°C. The valve can withstand these temperature variations, ensuring uninterrupted gas flow control. In terms of pressure, the valve has a working pressure rating of MOP5 (maximum operating pressure 5).
