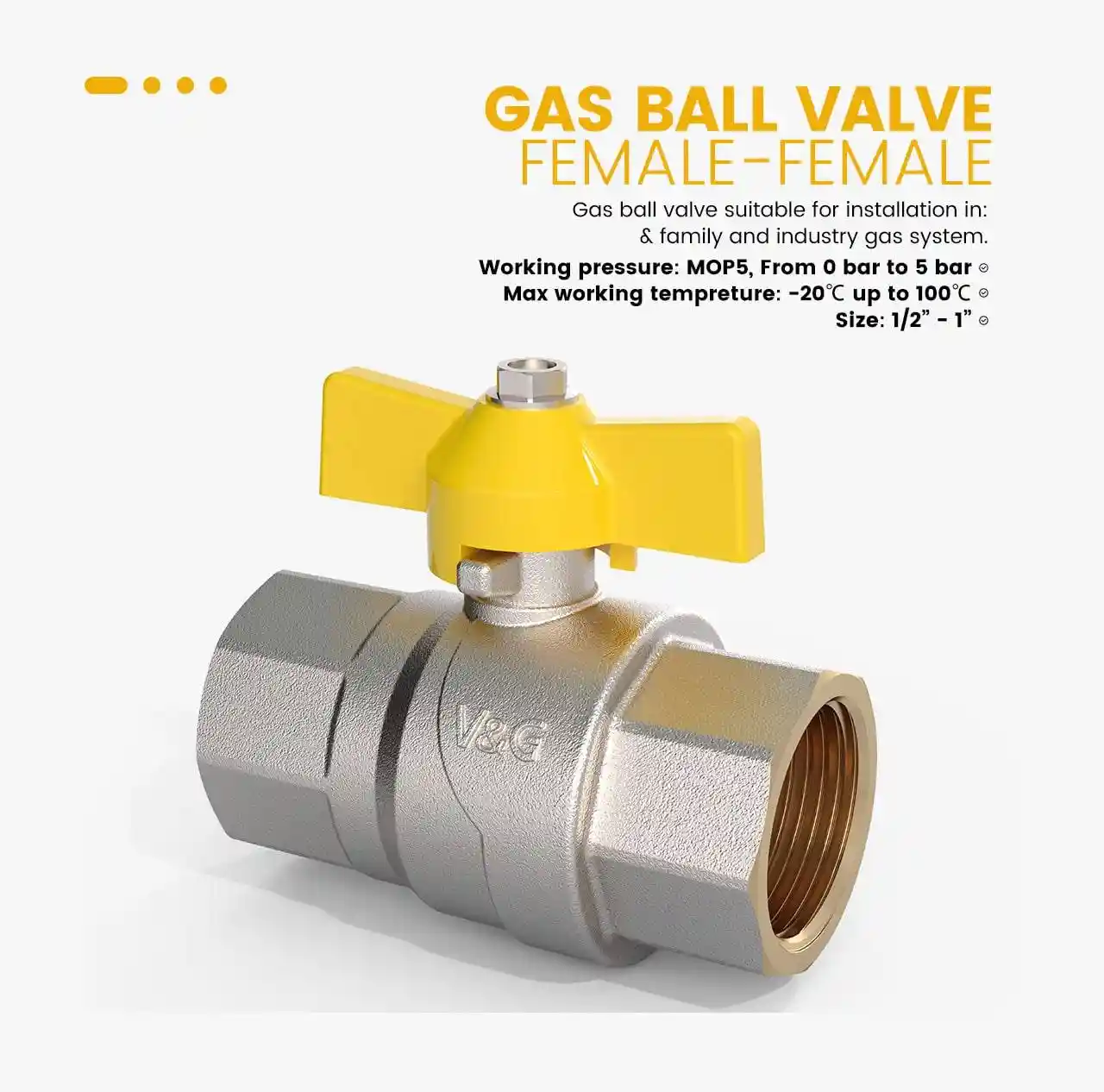

DVGW GAS BALL VALVE,FULL FLOW, FEMALE-FEMALE

Item Number : ART.VG10.71031GAS

The gas ball valve described is suitable for installation in both family and industry gas systems. It has been approved with the CE and DVGW certifications, indicating its compliance with safety standards.

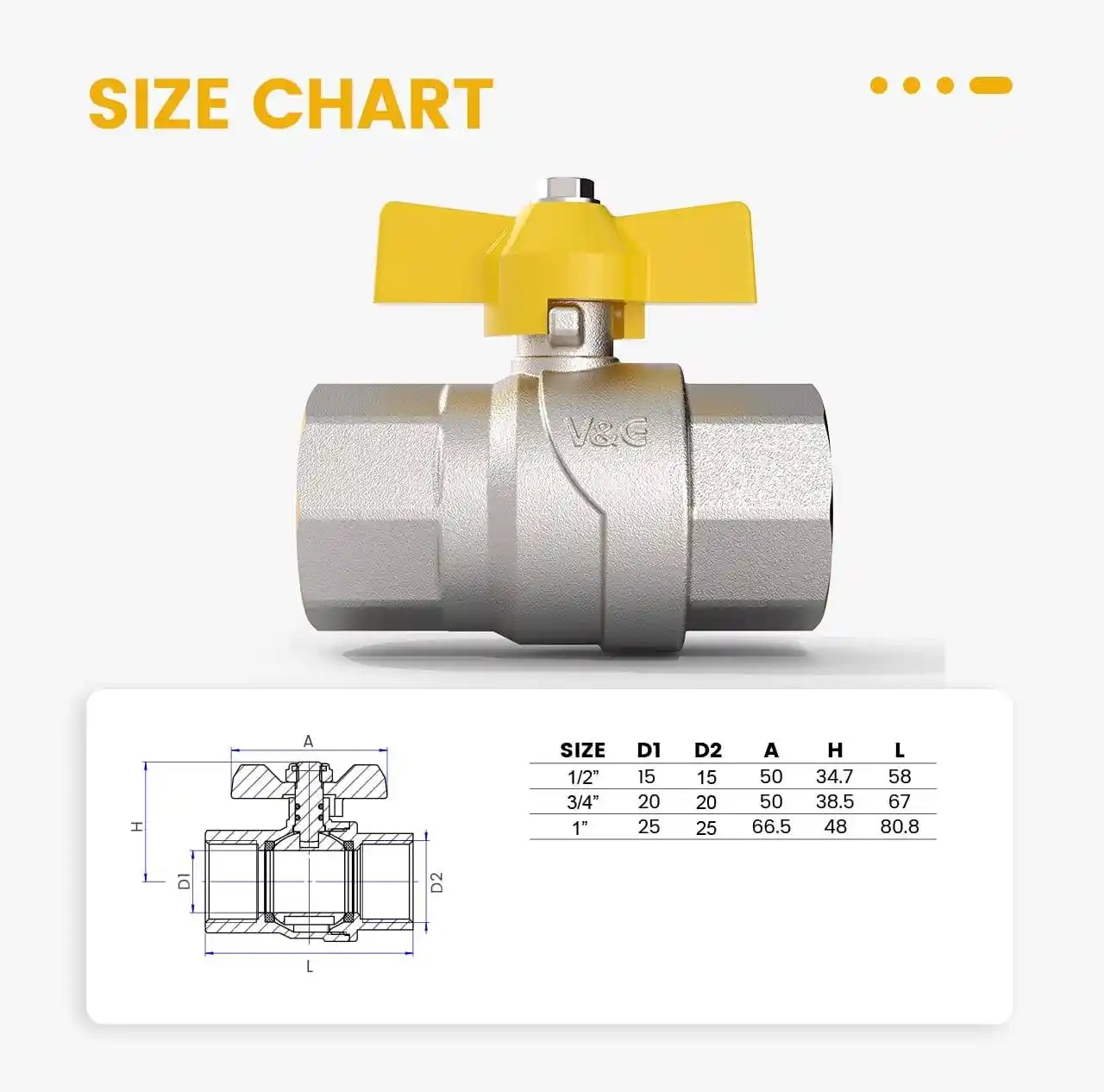

Size and Shape:

The gas ball valve is available in a size range of 1/4″ to 1″, providing flexibility for various installation requirements in both family and industrial settings. The body of the valve is constructed with nickel-plated brass, ensuring durability and resistance to corrosion.

Threads:

The gas ball valve is equipped with female/female threads, specifically ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1) and ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228). These standardized threads ensure compatibility with other components and enable secure and leak-free connections in the gas system.

Temperature and Pressure Range:

Operating within a temperature range of -20°C to 120°C, the gas ball valve is capable of withstanding a variety of environmental conditions, making it suitable for diverse applications. It has a working pressure rating of MOP5 (maximum operating pressure 5), indicating its ability to handle moderate to high gas system pressures.

No results found.

The DVGW GAS BALL VALVE described is suitable for installation in both family and industry gas systems. It has been approved with the CE and DVGW certifications, indicating its compliance with safety standards. The valve conforms to the EN331 standard, ensuring its ability to facilitate full flow control of gas. It is available in a size range of 1/4″ to 1″, providing flexibility for various installation requirements. The valve features a butterfly handle made of aluminum, allowing for easy operation and control. The body of the valve is constructed with nickel-plated brass, ensuring durability and resistance to corrosion.

The DVGW GAS BALL VALVE is equipped with female/female threads, specifically ISO 7/1 Rp parallel and ISO 228. These standardized threads ensure compatibility with other components and enable secure and leak-free connections in the gas system. Operating within a temperature range of -20°C to 120°C, the valve can withstand a variety of environmental conditions. It has a working pressure rating of MOP5, indicating its ability to handle moderate to high gas system pressures.
