Gas Valve Male-Female Threads

Item Number : VG10.99251

Variations:

No results found.

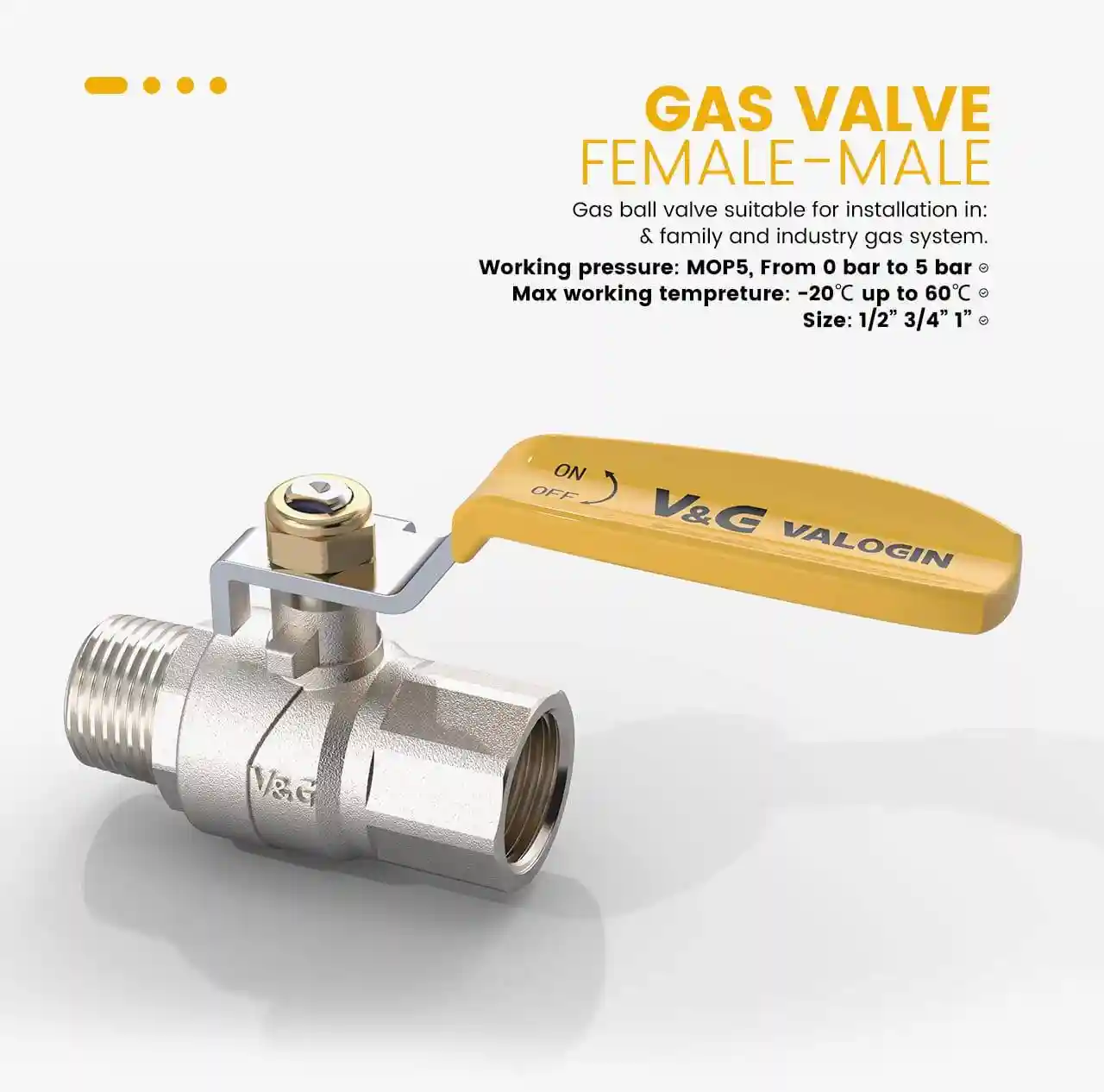

The Gas Valve with Male-Female Threads described here is designed for installation in both residential and industrial gas systems.

Size and Shape:

The gas valve is available in different sizes, including 1/2″, 3/4″, 1″, and “e”. These size options allow for compatibility with various gas system setups. The valve is designed with male-female threads, enabling a secure and tight connection when installing it into the gas system. The size and shape of the valve make it easy to integrate into different gas line configurations.

Threads:

The gas valve features male-female threads, allowing for a strong and leak-free connection. These threads ensure a secure attachment between the valve and the gas system components. The male-female thread design ensures compatibility with corresponding threaded fittings, facilitating a reliable and efficient installation process.

Temperature and Pressure Ranges:

The gas valve is engineered to operate within specific temperature and pressure ranges. It can handle a maximum working pressure of MOP5 (Maximum Operating Pressure 5 bar), ranging from 0 bar to 5 bar. In terms of temperature, the valve can operate effectively in temperatures as low as -20°C up to 120°C, ensuring its suitability for a wide range of environmental conditions.

+86 576 8742 8589

Quick Dispatch & Fast Delivery

The Gas Valve with Male-Female Threads is a versatile and reliable solution for both residential and industrial gas systems. With different size options available, including 1/2″, 3/4″, 1″, and “e”, this valve can easily be integrated into various gas line configurations. Its male-female threads ensure a secure and leak-free connection, providing peace of mind during installation. The valve’s design enables effective control over the flow of gas, making it suitable for a wide range of applications.

In terms of temperature and pressure ranges, this gas valve is engineered to operate within specific parameters. It can handle a maximum working pressure of MOP5 (Maximum Operating Pressure 5 bar), allowing it to withstand pressures ranging from 0 bar to 5 bar. This flexibility makes it compatible with both residential and industrial gas systems. Furthermore, the valve can operate efficiently in temperatures as low as -20°C and as high as 120°C, ensuring its suitability for various environmental conditions.

Overall, the Gas Valve with Male-Female Threads offers reliable control over gas flow in both residential and industrial settings. Its various size options and secure male-female threads allow for easy integration into different gas system configurations. With its wide temperature and pressure ranges, this valve provides a dependable solution for gas control, meeting the requirements of diverse applications.

Specifications

MaterialLead,BrassValve TypeBall Valve
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH2.5 x 0.75 x 0.75 inchesNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleButterfly
