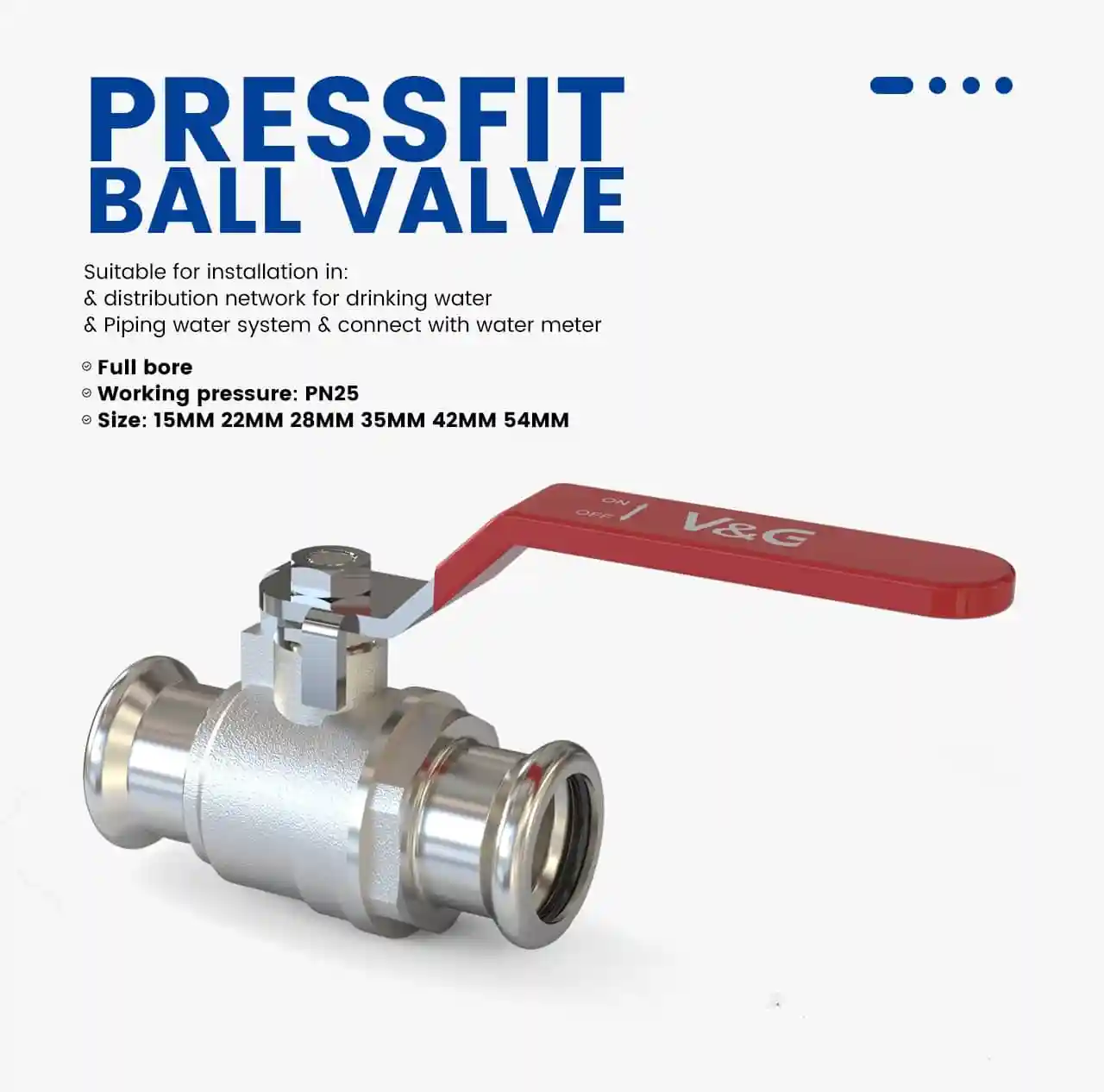

Press Fit Ball Valve

Item Number : ART.VG10.64501

These press-fit ball valves are designed in compliance with UK regulations and are suitable for use in plumbing systems.

Size and Shape:

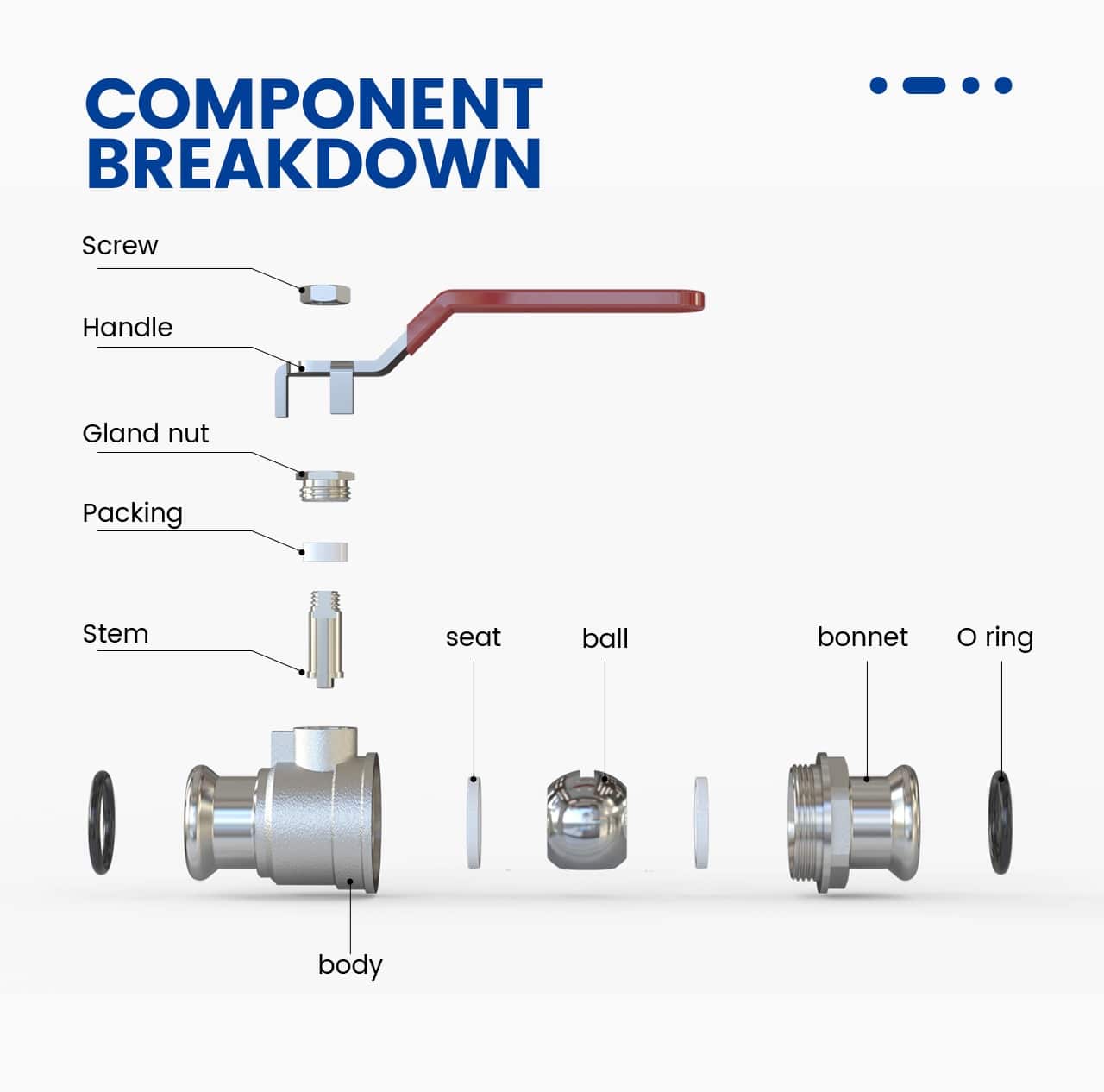

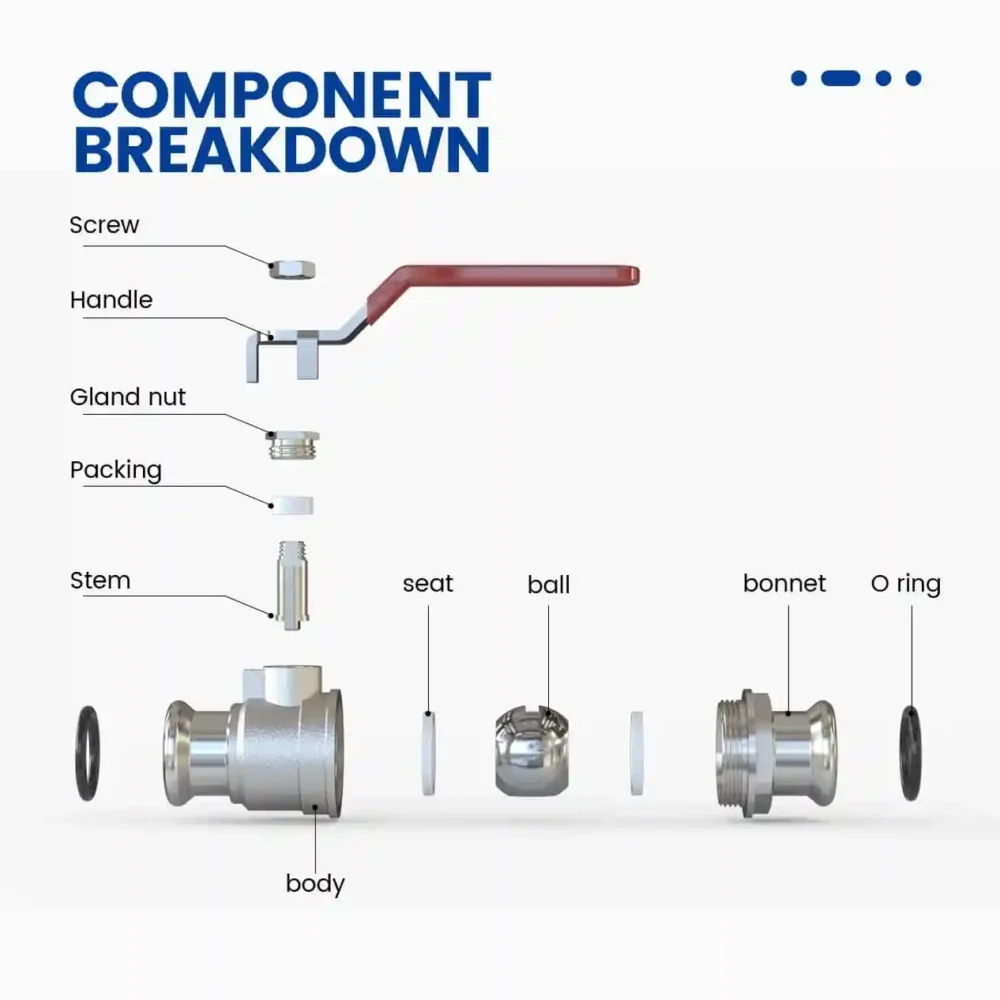

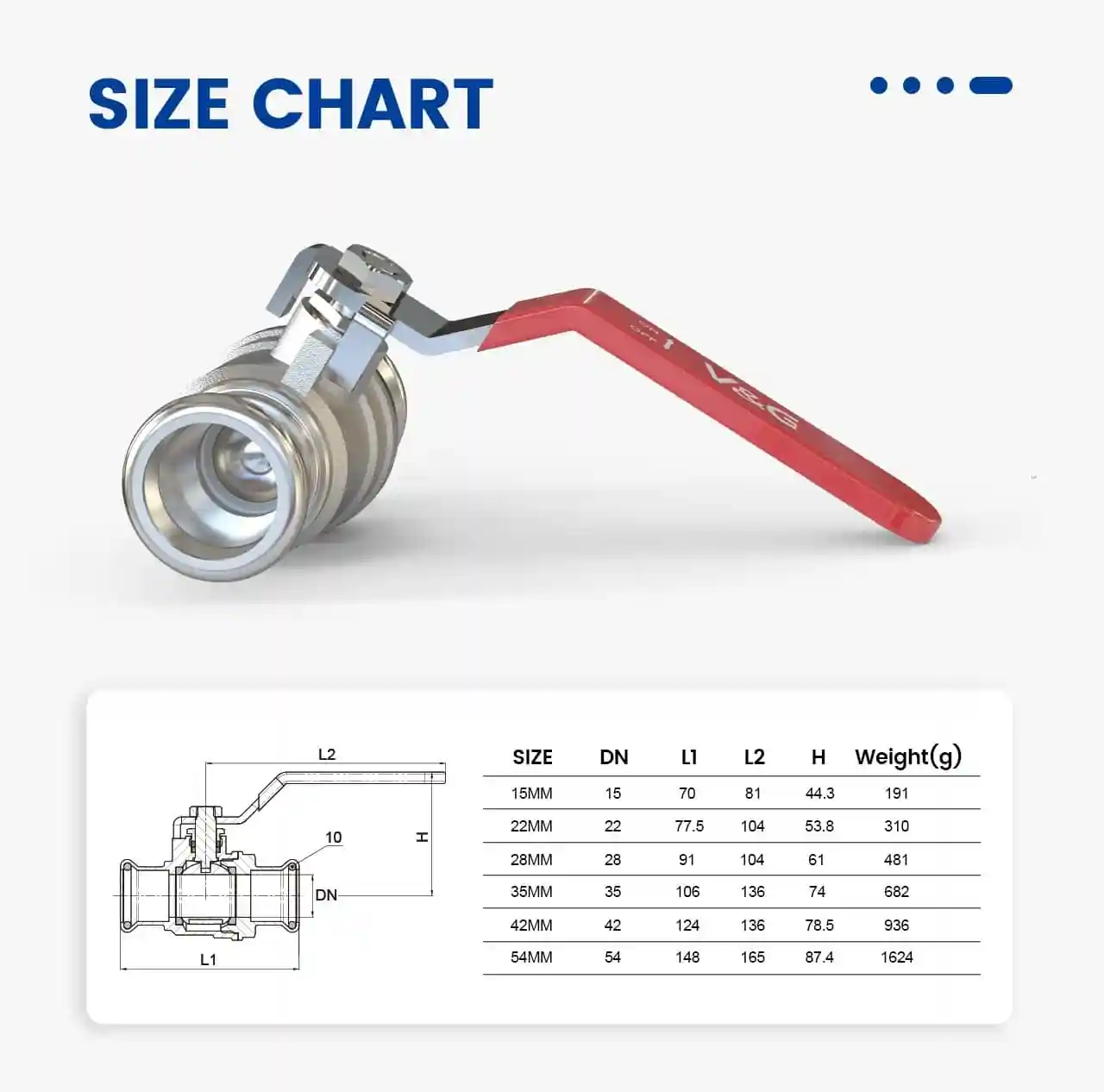

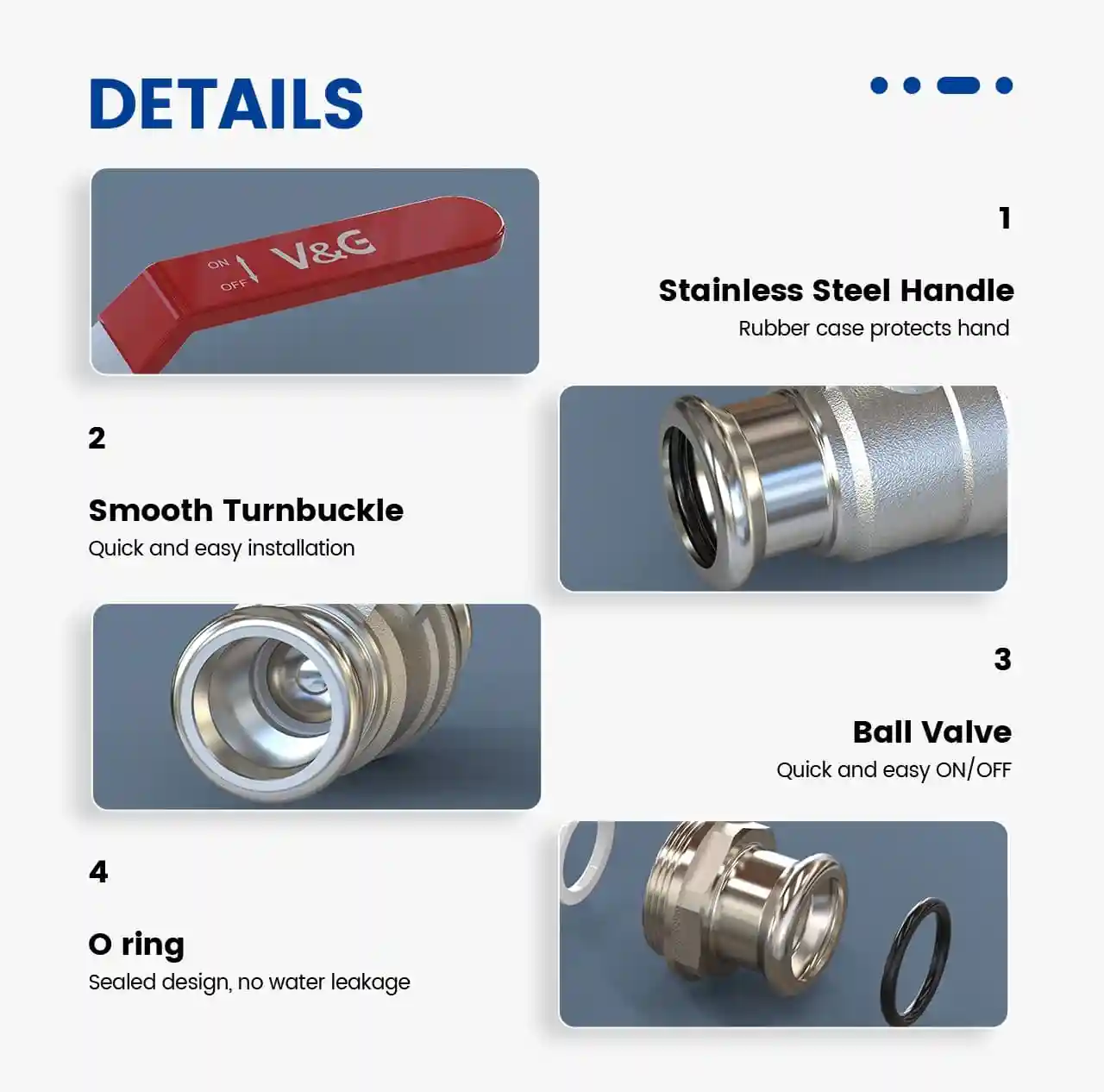

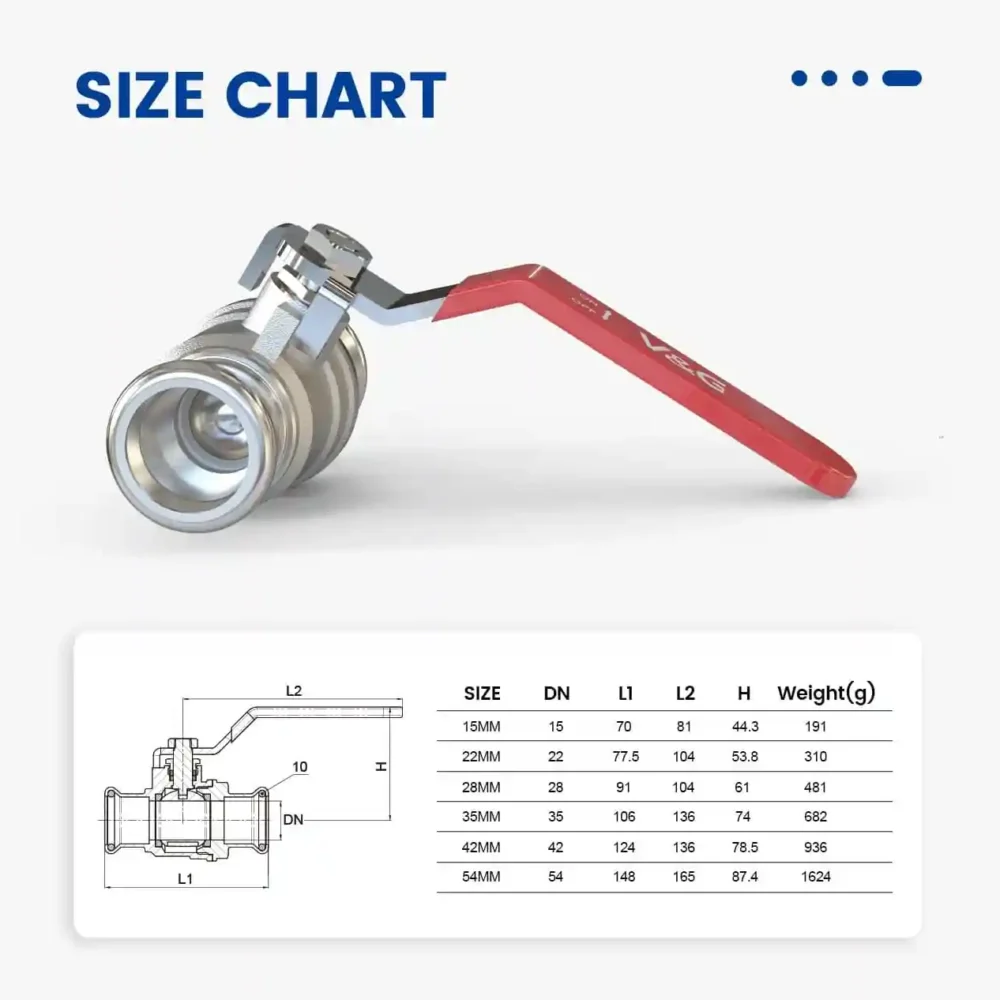

The press-fit ball valves are available in several sizes including 15MM, 22MM, 28MM, 35MM, 42MM, and 54MM. This Valve is installed with stainless steel handle and an O-ring mechanical gasket which resists corrosion and water leakage.

Threads:

The threads on these ball valves are designed to be compatible with plumbing systems in the UK. They are constructed with compression ends, which provide a secure connection to your plumbing system.

Temperature and Pressure Range:

The press-fit ball valves have a minimum and maximum working temperature range of -20℃ to 60 ℃, making them suitable for use in a wide range of environmental conditions. They have a maximum working pressure of 10 bar, which ensures they can handle high-pressure water systems safely and effectively.

sales62@valogin.com

+86 158 88600153

+86 576 8742 8589

Quick Dispatch & Fast Delivery

Press-fit ball valves in compliance with UK regulations are designed to be suitable for use in plumbing systems. They are available in several sizes, including 15MM, 22MM, 28MM, 35MM, 42MM, and 54MM, and are designed with a compression end for easy installation and connection to your plumbing system. The valve body, made of stainless steel, provides strength, durability, and corrosion resistance. It ensures the integrity of the valve’s structure, making it suitable for various applications. The valve incorporates an O-ring, a type of sealing ring typically made of elastomer material, which is placed between the valve body and the ball. The O-ring creates a tight seal when compressed, preventing leakage and ensuring efficient flow control.

The press-fit ball valves have a maximum working pressure of 10 bar, which makes them suitable for use in high-pressure water systems. They also have a minimum and maximum working temperature range of -20℃ to 60℃, which makes them suitable for use in a wide range of environmental conditions. These ball valves are certified to EN1254-2 standards, ensuring they meet all required quality and safety standards for use in plumbing systems. With their high-quality construction and reliable performance, these press-fit ball valves are an excellent choice for a wide range of applications in plumbing systems.
