The Pressfit Double Check Valve is a versatile component designed for installation in distribution networks for drinking water and piping water systems. It is specifically designed to connect with a water meter, ensuring accurate measurement and efficient water flow control.

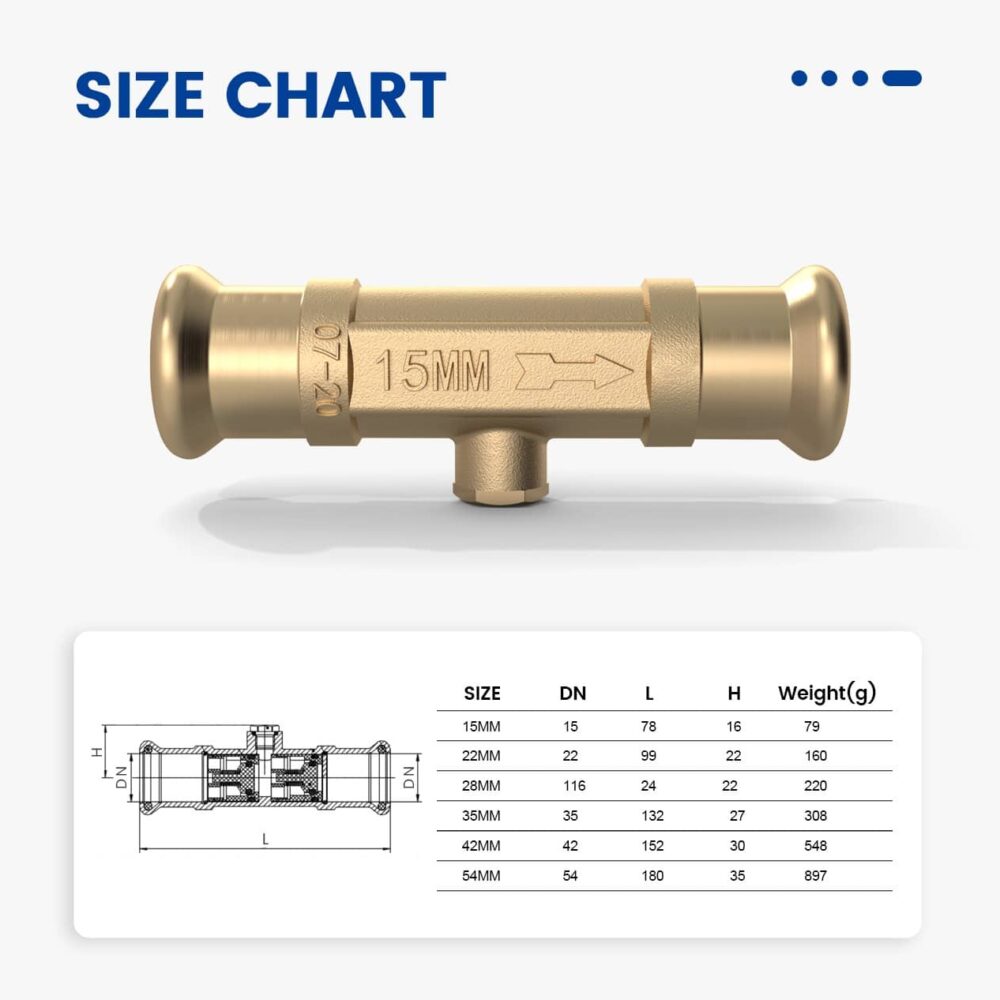

It is offered in sizes of 15mm, 22mm, 28mm, 35mm, 42mm, and 54mm, providing flexibility to meet the specific needs of the water distribution system. The valve is designed with a compact and streamlined shape, allowing for easy installation and integration into the piping network.
The Pressfit Double Check Valve features press-fit threads. These specialized threads provide a reliable and leak-free connection when joined with compatible press-fit fittings.
The Pressfit Double Check Valve is designed to withstand a maximum working pressure of PN16. The valve is suitable for a wide temperature range, with a maximum working temperature of -20°C to +85°C.
The Press-fit Double Check Valve is a durable and versatile component designed for installation in drinking water distribution networks and piping water systems. Made of annealed brass, this valve offers excellent corrosion resistance and longevity in water-related applications. Available in sizes ranging from 15mm to 54mm, the Pressfit Double Check Valve can accommodate various piping requirements. Its compact shape allows for easy integration into the piping network, ensuring a seamless installation.
Featuring press-fit threads, the valve provides a secure and leak-free connection when joined with compatible press-fit fittings. This eliminates the need for traditional threaded connections, simplifying the installation process and reducing the potential for leaks or joint failures. With a working pressure rating of PN16, the Press-fit Double Check Valve can handle high-pressure conditions typically encountered in water distribution systems. It is suitable for a wide temperature range, with a maximum working temperature of -20°C to +85°C. This versatility allows the valve to operate reliably in various environmental conditions, making it suitable for both cold and hot water applications.
