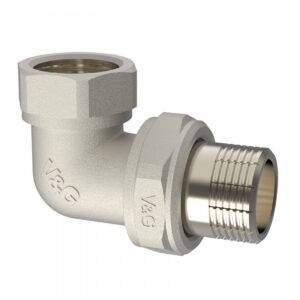

Angle Union with O-ring (Gulf)

Item Number : VG.205201

The V&G Angle Union with O-ring is a high-quality ball valve fitting designed for water distribution and changing the water flow direction.

Size and Shape:

The Angle Union with O-ring has a compact and space-saving design that makes it easy to install in tight spaces. It features a standard size and shape that makes it compatible with most piping systems.

Threads:

The male thread is G-type, which is a standard thread type used in most applications. The threads conform to ISO 228, which is equivalent to DIN EN ISO 228 and BS EN ISO 228 standards. This ensures compatibility with a wide range of piping systems and fittings.

Temperature and Pressure Range:

The Angle Union with O-ring is designed to operate in a wide range of temperatures and pressures. It can withstand temperatures ranging from -20°C to 120°C and pressures up to 16 bar.

MaterialLead,BrassValve TypeAngle Union
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxHMeduimNominal pressure:16 bar
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Male, Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleNo handle
