Gas Valve for Brazil, Male/Female Thread

Item Number : VG10.72011


No results found.

The Brazil gas valve MOP5 produced by Valogin is an essential component for controlling the flow of gas in various applications, such as household gas systems and industrial gas pipelines.

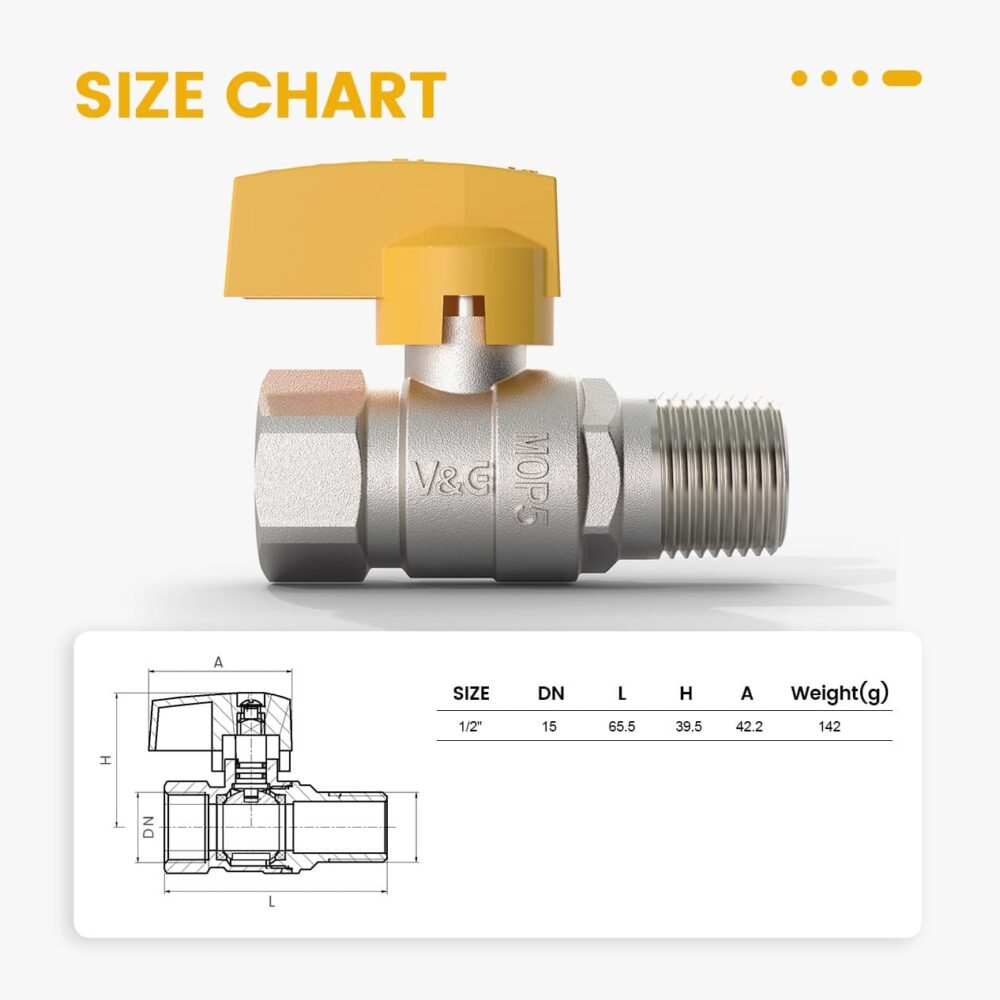

Size and Shape:

This gas valve comes in a standard size of 1/2″, the male/male threads allow for easy installation. While the aluminum handle offers comfortable operation. The body surface treatment is nickel-plated, providing resistance to corrosion and wear.


The gas valve features two types of threads, ISO 228 and ISO7/1 Rp parallel, which are equivalent to DIN EN ISO 228, BS EN ISO 228, DIN EN 10226-1, and BS EN 10226-1.

Temperature and Pressure Range:

The Brazil gas valve MOP5 is suitable for use in a wide temperature range, with a minimum and maximum working temperature of +120°C. The valve has a working pressure range of 0 to 5 bar, making it ideal for use in various gas systems.

+86 576 8742 8589

Quick Dispatch & Fast Delivery

Introducing the Brazil Gas Ball Valve Flat Design produced by Valogin. An essential component for controlling gas flow in a wide range of applications. This valve is designed to meet EN331 standards, ensuring high-quality performance and safety. The valve’s 1/2″ size and heavy-duty construction make it ideal for use in both commercial and residential settings. The valve’s male/male threads and aluminum handle allow for easy installation and operation.

The body of the Ball Valve Flat Design is made from nickel-plated brass. Which provides excellent resistance to corrosion and rust. The surface treatment of the body ensures that it remains durable and long-lasting. The valve can withstand temperatures ranging from -20°C to +120°C and has a working pressure for gas of 0 to 5 bar. The valve’s threaded connections are compatible with ISO 228, DIN EN ISO 228, BS EN ISO 228, ISO7/1 Rp parallel, DIN EN 10226-1, and BS EN 10226-1.


MaterialLead,BrassValve TypeBall Valve
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH2.5 x 0.75 x 0.75 inchesNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
