The valve is designed to provide a reliable and efficient means of controlling the flow of water in a variety of applications, including heating, gas plumbing, and fitting.
The valve has a standard passage size of 1/2″- 2″ and features a nickel-plated body that is durable and resistant to corrosion. The valve is designed in a compact and ergonomic flat shape that makes it easy to install and use.
The valve comes with Female/Male threads that are compatible with ISO 228, which is equivalent to DIN EN ISO 228 and BS EN ISO 228.

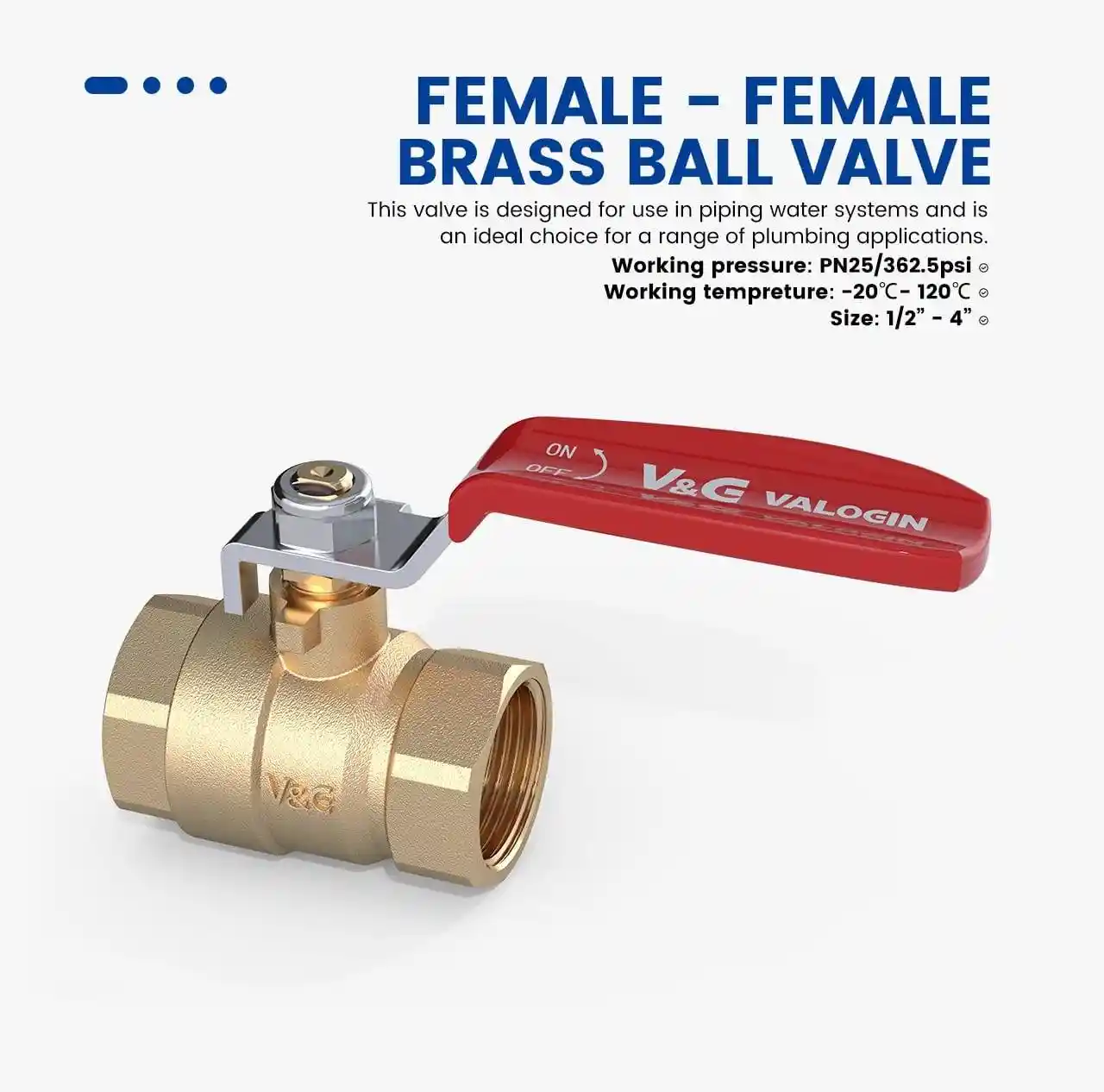

The Lever Ball Valve FxF V&G Optima is designed to operate within a temperature range of -20°C to 120°C, making it suitable for use in a wide variety of applications. The valve has a maximum working pressure of PN25.
The Lever Ball Valve FxF is a high-quality valve suitable for use in piping water systems that conform to the EN13828 standard. The valve is designed to provide a reliable and efficient. It means of controlling the flow of water in a variety of applications, including heating, gas plumbing, and fitting.
Our Lever Ball Valve FxF is capable of handling a wide range of temperatures. With a working temperature range of -20°C to 120°C. It can also handle a working pressure of PN25, ensuring it can withstand high-pressure water systems without issue.
Our Valve is equipped with ISO 228 threads, which are equivalent to DIN EN ISO 228 and BS EN ISO 228, making it a versatile option for many different water piping systems.
Trust in our valve’s quality and reliability for your water piping system needs.
| Item: | Ball Valve | Ball Material: | Chrome Plated Brass |

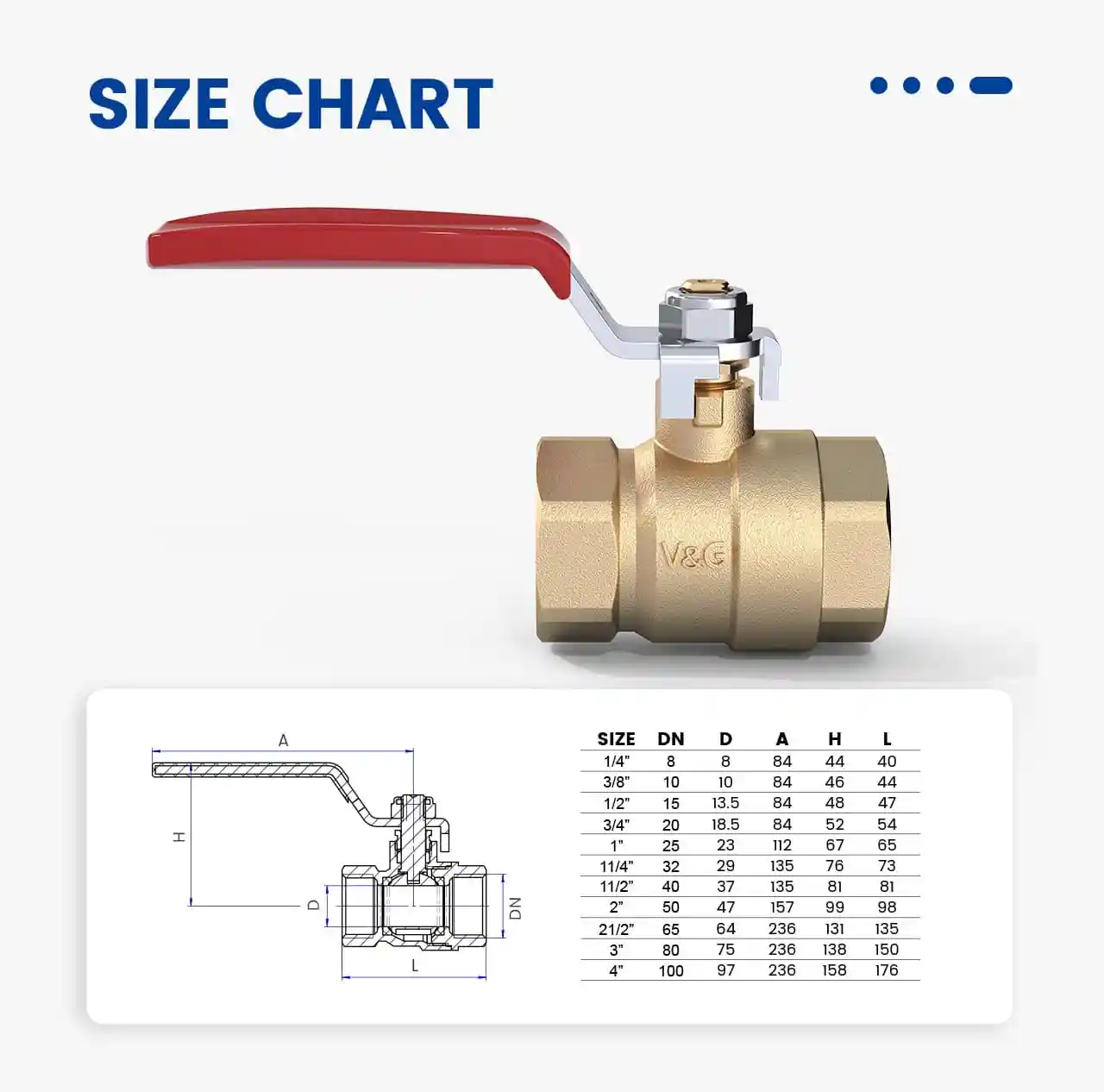

| Size: | 1/2″- 2″ | Valve Basic Body Material: | Brass |
| Brass material: | 59-3 | Surface Treatment: | Nickel Plating |
| Connection Type: | Female BSP x FeMale BSP | Application: | Gas cock, appliance hook-up |
| Handle Material: | IRON / AL | Max. Temp: | 120°C |
| Handle Type: | Lever | Working Pressure: | PN25 |
| Stem Type: | Blowout Proof | Port: | All |
| Stem Material: | Brass | Features: | Full Port for Maximum Flow Rate |
| Seat Material: | PTFE | Standards: | DIN EN ISO 228 and BS EN ISO 228 |
| Body Seal Material: | PTFE |
