BRASS GATE VALVE IRON HANDLE

Item Number : ART.VG11.01013

Variations:

No results found.

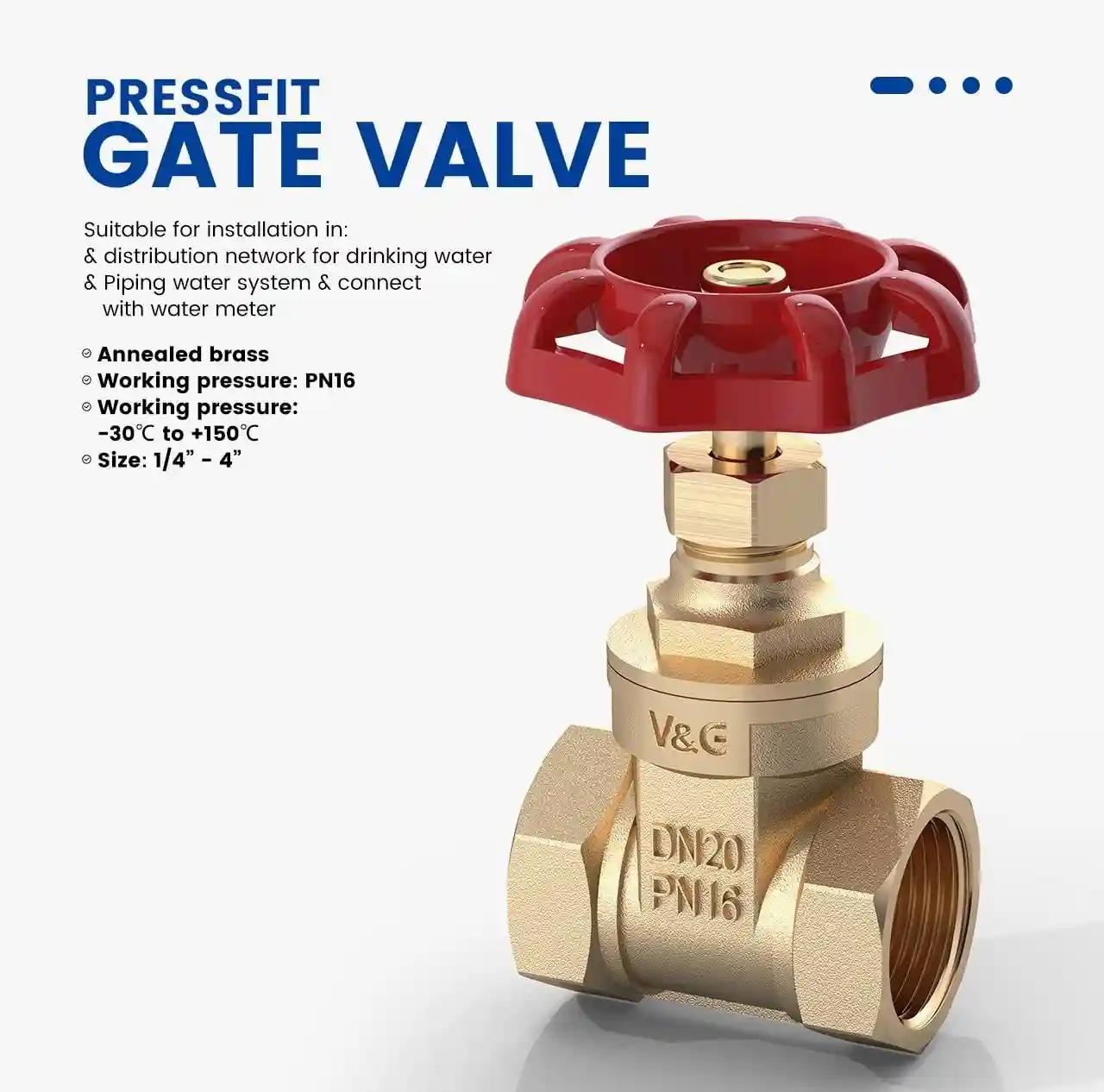

The Gate Valve with Iron-Handle is a reliable and robust component specifically designed for applications involving drinkable water and piping water systems.

Size and Shape:

The gate valve is available in a size range of 1/2″ to 4″, offering versatility and compatibility with various pipe sizes commonly used in drinkable water and piping water systems.

Threads:

The valve features ISO 228 threads, which are equivalent to DIN EN ISO 228 and BS EN ISO 228 standards. These standardized threads ensure secure and reliable connections between the valve and compatible pipes or fittings.

Temperature and Pressure Range:

The gate valve is designed to operate within a temperature range of 0°C to 80°C, making it suitable for both cold and moderately hot water applications. With a working pressure rating of PN16, the valve can withstand a working pressure of up to 16 bar.

+86 576 8742 8589

Quick Dispatch & Fast Delivery

The Gate Valve with Iron-Handle is an essential component for drinkable water and piping water systems, offering reliable flow control and system integrity. With its versatile size range of 1/2″ to 4″, this valve can accommodate various pipe sizes, making it suitable for a wide range of applications. The brass body of the valve not only provides durability but also ensures corrosion resistance, maintaining water quality and preventing contamination. The iron handle offers a sturdy grip for easy operation and precise flow adjustment.

Equipped with ISO 228 threads, which are equivalent to DIN EN ISO 228 and BS EN ISO 228 standards, the gate valve ensures secure and leak-free connections. The standardized threading enables easy installation and compatibility with a variety of plumbing systems, promoting seamless integration. By adhering to these thread standards, users can confidently connect the valve to pipes or fittings without concerns of compatibility or leakage.

The Gate Valve with Iron-Handle operates within a temperature range of 0°C to 80°C, allowing it to handle both cold and moderately hot water applications effectively. It is important to consider the recommended temperature limits to ensure optimal performance and longevity of the valve. With a PN16 working pressure rating, the valve can withstand pressures of up to 16 bar, making it suitable for high-pressure water systems. This robust pressure rating guarantees reliable and efficient flow control, providing users with peace of mind and system reliability.

Video

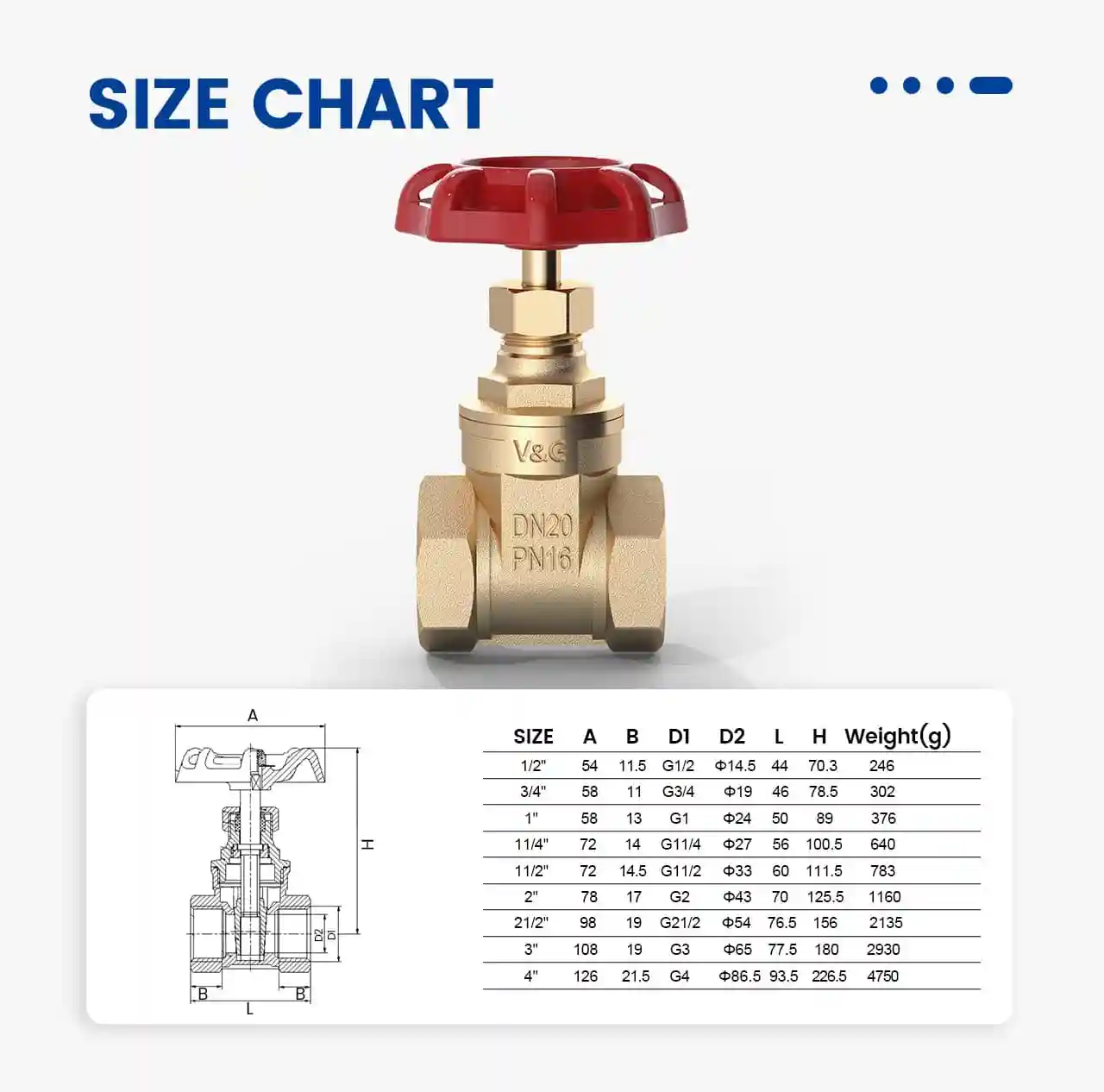

Drawing

Catalog

Product Markets

Certified by
