Brass Swing Check Valve Female/Female

Item Number : VG12.04033

This check valve is specifically designed for use in South America and meets the PN16/232PSI standard.

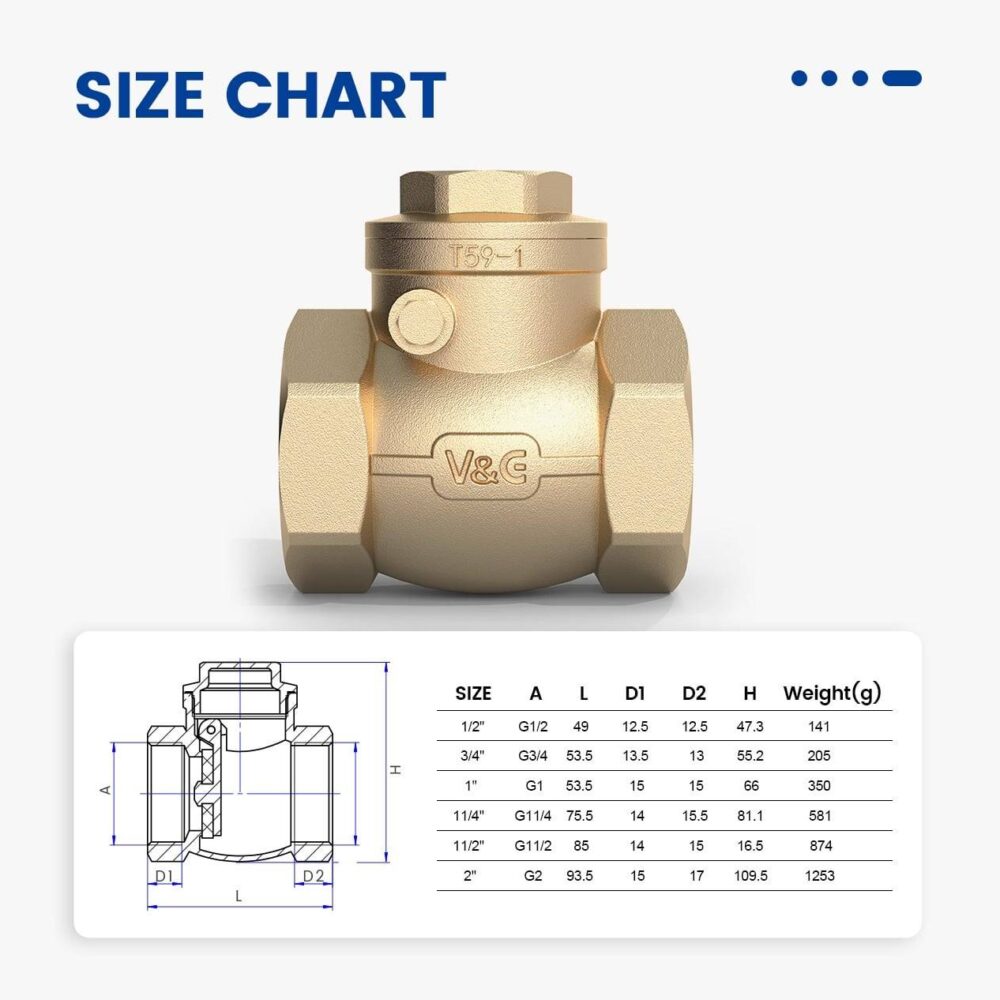

Size and Shape:

The valve is available in sizes ranging from 1/2″ to 4″, making it suitable for a range of piping systems. The body surface treatment is brass nature color, providing a durable and corrosion-resistant finish.


The valve features female/female threads that conform to ISO 228 (equivalent to DIN EN ISO228 and BS EN 228) standards.

Temperature and Pressure Range:

The V&G Brass Swing Check Valve has a working pressure of PN16/232PSI, making it suitable for use in high-pressure systems. It is also suitable for use over a wide range of temperatures, with a minimum and maximum working temperature of 0℃ to +66°C.

+86 576 8742 8589

Quick Dispatch & Fast Delivery

MaterialLead,BrassValve TypeSwing Check Valve
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH1/2″ to 4″Nominal pressure:PN16/232PSI
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleNo Handle




Product Markets

Certified by
