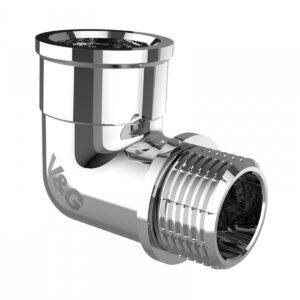

Chrome Angle Fitting FxM (Gulf)

Item Number : VG15.13212C-1

The Chrome Angle Fitting FxM is a versatile component used in water distribution systems to redirect the flow of water in different directions.

Size and Shape:

The Chrome Angle Fitting FxM comes in various sizes and shapes to accommodate different plumbing requirements. The shape of the fitting is designed to allow easy installation and connection to other components in the plumbing system.

Threads:

The male thread configuration, denoted as “-G,” indicates that the fitting has external threads that are designed to connect with compatible female-threaded components.

Temperature and Pressure Range:

The Chrome Angle Fitting FxM is constructed from CW617N, a type of brass known for its excellent strength and corrosion resistance. This material allows the fitting to withstand the demands of water distribution systems and ensures its durability over time.

The Chrome Angle Fitting FxM is an essential component used in water distribution systems for redirecting water flow and changing its direction. This fitting is particularly useful in plumbing installations where there is a need to alter the course of water or connect different piping segments. Its chrome finish adds an aesthetic appeal while providing resistance against corrosion and wear.

The fitting is designed with threaded joints, allowing for easy and secure installation in piping systems. With male threads (-G), it can be connected to compatible female-threaded components, ensuring a tight and leak-free connection. The use of threaded joints simplifies the installation process, making it more efficient and time-saving.

Constructed from CW617N brass, the Chrome Angle Fitting FxM offers excellent durability and reliability. Brass is known for its strength, resistance to corrosion, and longevity, making it an ideal choice for plumbing applications. This ensures that the fitting can withstand the rigors of daily water flow, maintaining its functionality over an extended period.

Specifications

MaterialLead,BrassValve TypeBall Valve
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH2.5 x 0.75 x 0.75 inchesNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleButterfly
