DVGW GAS BALL VALVE, FULL FLOW, FEMALE-FEMALE

Item Number : ART.VG10.61011

This gas ball valve is designed to be suitable for installation in both family and industrial gas systems. It offers a reliable solution for controlling gas flow with its CE approval, DVGW approval, and compliance with the EN331 standard.

Size and Shape:

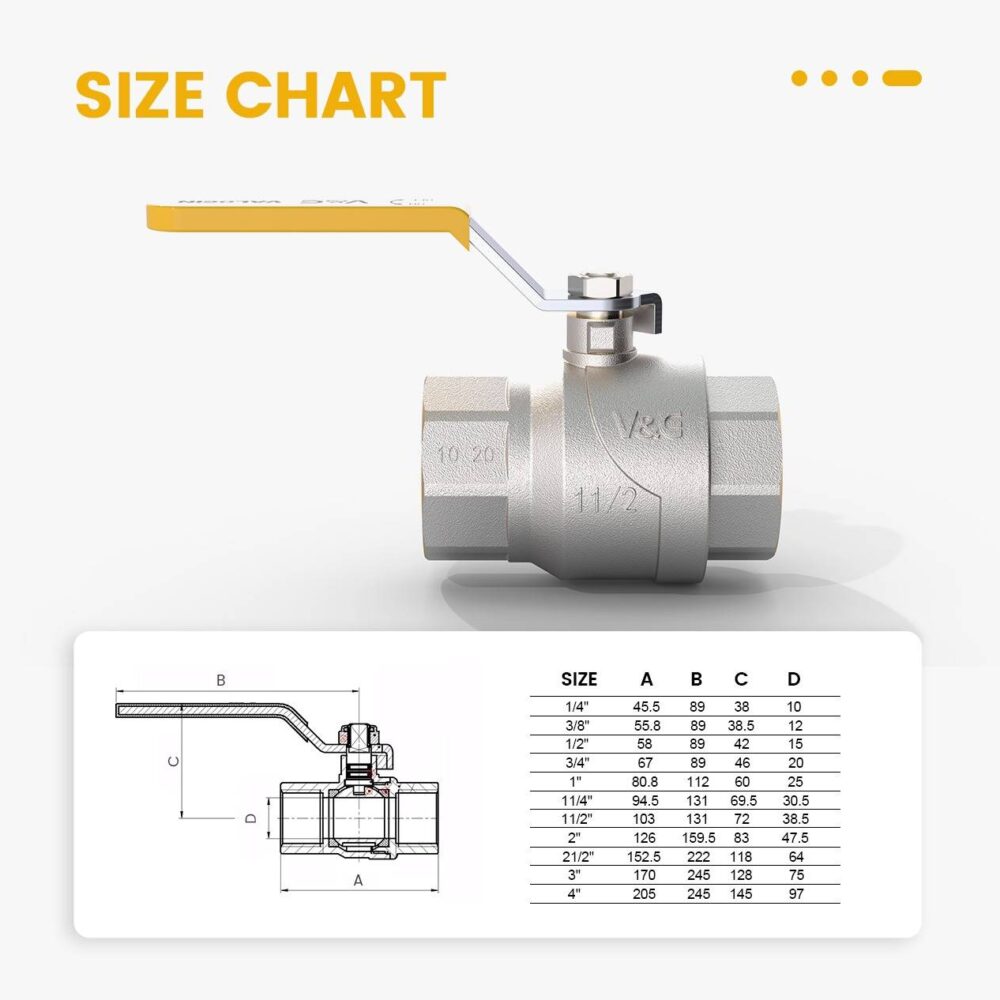

The gas ball valve is available in a size range from 1/4″ to 4″, offering versatility to accommodate different installation requirements. This range allows for flexibility in fitting the valve into various gas system configurations, whether it is a small-scale family system or a larger industrial setup.

Threads:

The gas ball valve features female/female threads. It supports two types of standardized female threads: ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1) and ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

Temperature and Pressure Range:

It can handle working temperatures as low as -20°C and as high as 120°C, ensuring reliable performance even in extreme weather conditions. In terms of pressure, the valve has a working pressure rating of MOP5 (maximum operating pressure 5).

+86 576 8742 8589

Quick Dispatch & Fast Delivery

This Gas Ball Vavle is suitable for installation in both family and industrial gas systems. It has a size range of 1/4″ to 4″ and is CE approved, DVGW approved, and compliant with the EN331 standard. The valve provides full flow capability and is designed to ensure efficient gas flow control while meeting safety requirements.

The Gas Ball Vavle features female/female threads, making it easy to install and connect with other components of the gas system. It supports two types of standardized female threads: ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1) and ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228). These threads ensure compatibility with a wide range of fittings, facilitating seamless integration and reducing the risk of leaks.

With a working temperature range of -20°C to 120°C, this valve can operate reliably in various environments, including extreme weather conditions. It has a working pressure rating of MOP5 (maximum operating pressure 5), indicating its capability to handle moderate to high gas system pressures. This ensures safety and efficiency in gas flow management, minimizing the risk of leaks or pressure-related issues.
