DVGW GAS BALL VALVE, FULL FLOW, FEMALE-MALE

Item Number : VG10.99261

Variations:

No results found.

The gas ball valve described is specifically designed for installation in both family and industrial gas systems. It has undergone rigorous testing and holds CE and DVGW approvals, ensuring compliance with safety standards.

Size and Shape:

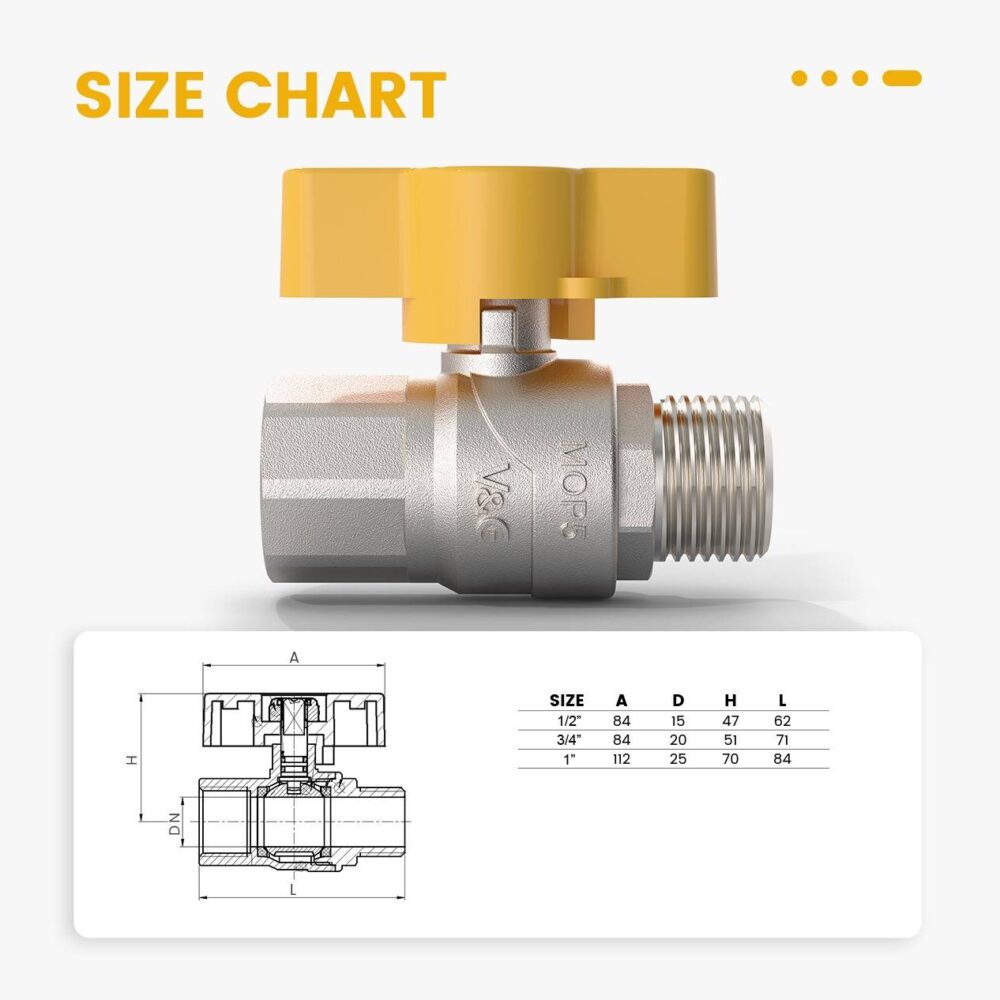

The gas ball valve comes in a versatile size range of 1/4″ to 1″. The valve features a well-designed shape that optimizes space utilization and facilitates convenient integration into existing gas systems.

Threads:

This gas ball valve supports both female and male threads, making it compatible with a wide range of fittings and connectors. The female threads are available in two types: ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1) and ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

Temperature and Pressure Range:

The gas ball valve is designed to operate within a wide temperature range, from -20°C to 120°C. In terms of pressure, the valve has a working pressure rating of MOP5 (maximum operating pressure 5).

+86 576 8742 8589

Quick Dispatch & Fast Delivery

Within the realm of both household and industrial gas systems, the described gas ball valve emerges as a versatile sentinel of control and security. Its broad applicability spans environments from cozy family dwellings to bustling industrial complexes. The valve, available in sizes ranging from 1/4″ to 1″, bears the esteemed marks of CE and DVGW approvals, emblematic of its steadfast adherence to stringent safety benchmarks. This seal of approval assures users that not only does the valve grant unparalleled control, but it also stands as a guardian of well-being. The valve’s prowess extends beyond its size and certifications. It becomes a conduit for unimpeded flow, a vessel through which gas journeys with unwavering efficiency. An embodiment of engineering diligence, the valve adheres resolutely to the EN331 standard, a testament to its unwavering commitment to functionality and safety.

Threads, like the tendrils of connection, thread the narrative of installation and compatibility. This valve boasts both female and male threads, harmoniously fostering an environment of ease and flexibility during installation. The threads come in distinct iterations: the female threads dance between the realms of ISO 7/1 Rp parallel and ISO 228, while the male threads gracefully navigate the path of ISO 7/1 R taper and ISO 228 configurations. These standardized threads become the guardians of reliability, fortifying connections while minimizing the specter of leaks.

As a masterpiece of metallurgy, the gas ball valve fuses aluminum and nickel-plated brass to become an embodiment of longevity. The butterfly handle, an emblem of finesse, graces the valve with a touch of elegance, while the body’s nickel-plated brass construction encapsulates a spirit of resilience against the elements. This synergy of materials ensures that the valve remains a steadfast guardian, capable of withstanding the trials of time while championing an aura of durability. Operating within a temperature range of -20°C to 120°C, this valve boasts versatility that mirrors its broad applications. It thrives in environments both frigid and temperate, aligning seamlessly with diverse operational landscapes. The valve’s operational mettle extends to its working pressure rating of MOP5, a beacon of assurance that it remains resolute even in the face of moderate to high gas system pressures.

Video

Drawing

Catalog

Product Markets

Certified by
