GAS BALL VALVE FxF (EN331)

Item Number : VG10.16912

The Gas ball valve is designed to meet UAE regulations and is specifically suitable for gas systems. Its purpose is to regulate the flow of gas, ensuring safety and efficiency within the system.

Size and Shape:

Available in sizes ranging from 2″ to 3/8″, the Gas ball valve offers versatility and adaptability to different plumbing system requirements. The various size options cater to a wide range of applications. The product has a Maximum Operating Pressure (MOP) of 5.

Threads:

The Gas ball valve features a threaded end, which allows for easy installation and secure attachment to the gas line using compatible threaded fittings. The threaded connection ensures a reliable and leak-free joint, minimizing the risk of gas leakage and ensuring smooth gas flow within the plumbing system.

Temperature and Pressure Ranges:

The Gas ball valve is designed to operate within a wide temperature range, with a minimum working temperature of -20℃ and a maximum working temperature of 100℃. This temperature tolerance enables reliable performance in various climate conditions.

The Exclusive Agent of V&G Valogin in UAE

Alta Gas General Trading LLC
P.O. Box : 41033
Dubai, United Arab Emirates
Tel: Toll Free-8002582
sales@altagastrading.com

The Gas ball valve is specifically designed to meet the regulatory requirements set forth in the UAE for gas systems. Its primary function is to control the flow of gas, ensuring safety and efficiency within the system. The valve is approved in accordance with CE and EN331 standards, guaranteeing compliance with rigorous quality and safety measures. Furthermore, its KITEMARK and BSI approval certification reinforces its adherence to industry standards and regulations, solidifying its reputation as a trustworthy component for plumbing systems. This makes it a reliable choice for various gas-related applications, providing peace of mind for plumbing systems that demand optimal performance and adherence to regulations.

Available in sizes ranging from 2″ to 3/8″, the Gas ball valve offers versatility and adaptability to suit a wide range of plumbing system requirements. Its threaded end design allows for easy installation and secure attachment to the gas line using compatible threaded fittings. The threaded connection ensures a tight and leak-free joint, reinforcing the overall integrity of the plumbing system. Whether utilized in residential, commercial, or industrial settings, the Gas ball valve’s size and shape options make it well-suited for diverse installation scenarios, effectively controlling the flow of gas in a wide array of applications.

Operating within a temperature range of -20℃ to 100℃, the Gas ball valve is capable of withstanding both low and moderate temperatures, enabling reliable performance in various environmental conditions. With a maximum working pressure of MOP5, the valve ensures durability and safety even in demanding gas systems. Constructed with high-quality materials such as nickel-plated brass and Q235 Steel with Chrome Plating, the Gas ball valve is engineered to withstand the specified temperature and pressure ranges, providing long-lasting performance and reliable gas flow control in plumbing applications.

Installation & Operating Instruction

  1. Do not unpack the valve until installation to prevent falling of any unwanted substance that may affect the working of valve.
  2. Take measures againts any possible damage thay may occur during transport and shipment.
  3. Clean away every unwanted substance in your system before installation.
  4. Valve sholud be off position while intalling.
  5. Be careful that the thread length of the part that will be installed to the valve will not be too longer or too shorter than the thread length of the valve.
  6. While installing, grab the valve by the appropriate tool from the across flats where you’ll install it.
  7. During installation do not use excessive adhesive or any unsuitable substance.
  8. Use the valve fully open or fully closed position.
  9. Do not paint the valve. Do not expose the valve with abbrasive chemicals.
  10. Do not use any other tools for opening or closing the valve and do not remove the handle.
  11. In case of any damage or disorder, valve should be changed by authorities.
  12. Complying with the installation and usage instruction is compulsory. Otherwise, the product will be cut of guarantee.
  13. Do not forget to get the document of guarantee. This document is valid only with the related bill.

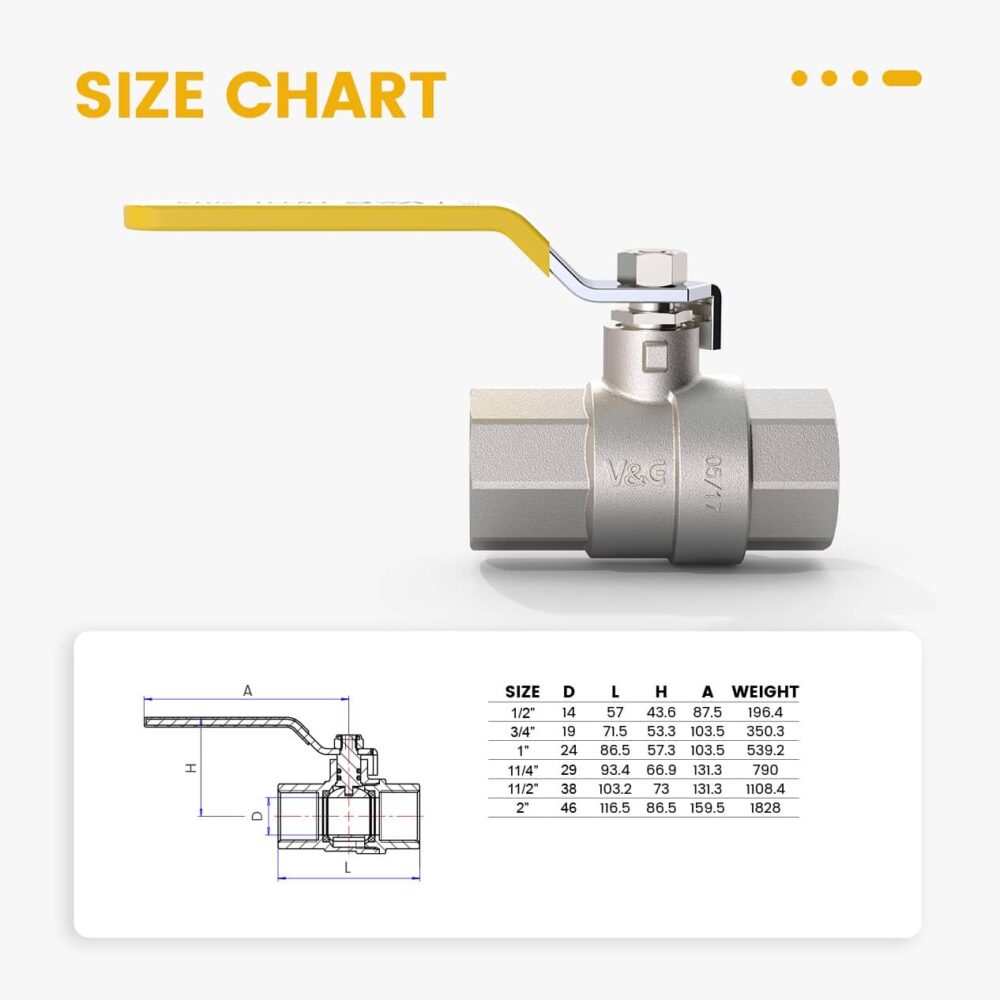

Drawing
