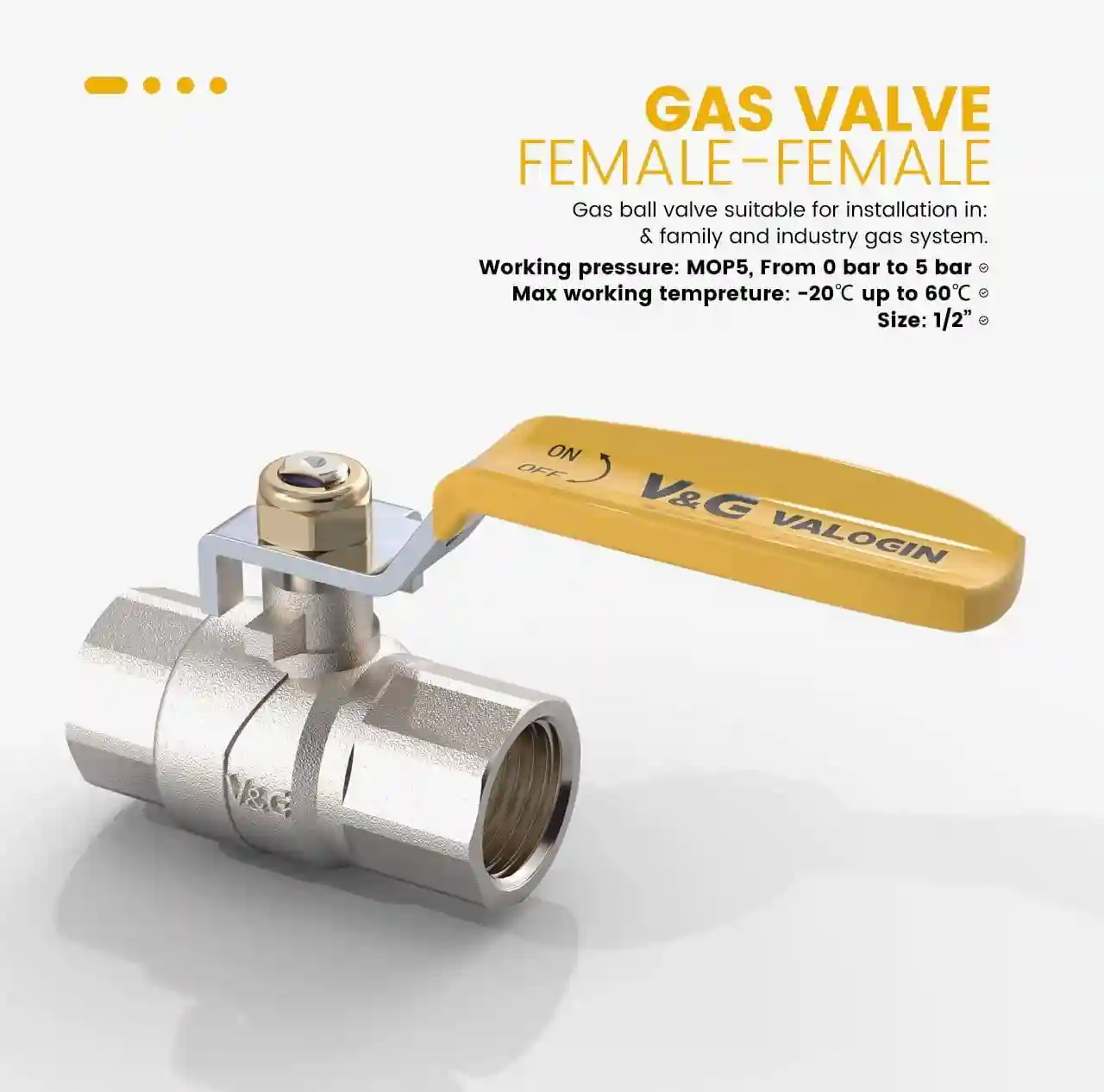

Gas Ball Valve, Lever handle

Item Number : VG10.99231

Variations:

No results found.

When it comes to safely and effectively controlling the flow of gas in a wide range of industrial and family applications, the right valve is essential. That’s where the Gas Ball Valve comes in.

Size and Shape:

This gas ball valve is available in sizes ranging from 1/4″ to 4″. Designed to provide full flow and reliable performance, this gas ball valve features a lever handle made of durable steel for easy operation.

Threads:

The gas ball valve features female/female threads. The threads conform to two industry standards – ISO 7/1 Rp parallel (equivalent to DIN EN 10226-1 and BS EN 10226-1) and ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

Temperature and Pressure Range:

With a working temperature range of -20°C to 120°C and a maximum working pressure of MOP5, this gas ball valve is built to withstand harsh conditions and deliver reliable performance in a variety of gas systems.

+86 576 8742 8589

Quick Dispatch & Fast Delivery

Overview:

The Ball Valve with Lever handle is a versatile and reliable valve that is suitable for a variety of gas systems in both industrial and family settings. With its durable construction and nickel-plated brass body. This valve provides long-lasting performance that can withstand even the harshest conditions. The lever handle is made of strong steel for easy operation and is designed to provide full flow control. Ensuring reliable performance in a wide range of applications.

In addition to its durable construction, the Ball Valve with Lever handle is also designed with versatility in mind. The valve features female/female threads that conform to both ISO 7/1 Rp parallel and ISO 228 standards. Making it compatible with a wide range of fittings and accessories. This ensures that the valve can be easily installed in a variety of gas systems without the need for specialized tools or equipment.



Specifications

MaterialLead,BrassValve TypeBall Valve
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH2.5 x 0.75 x 0.75 inchesNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleButterfly
