Item Number : VG10.71061

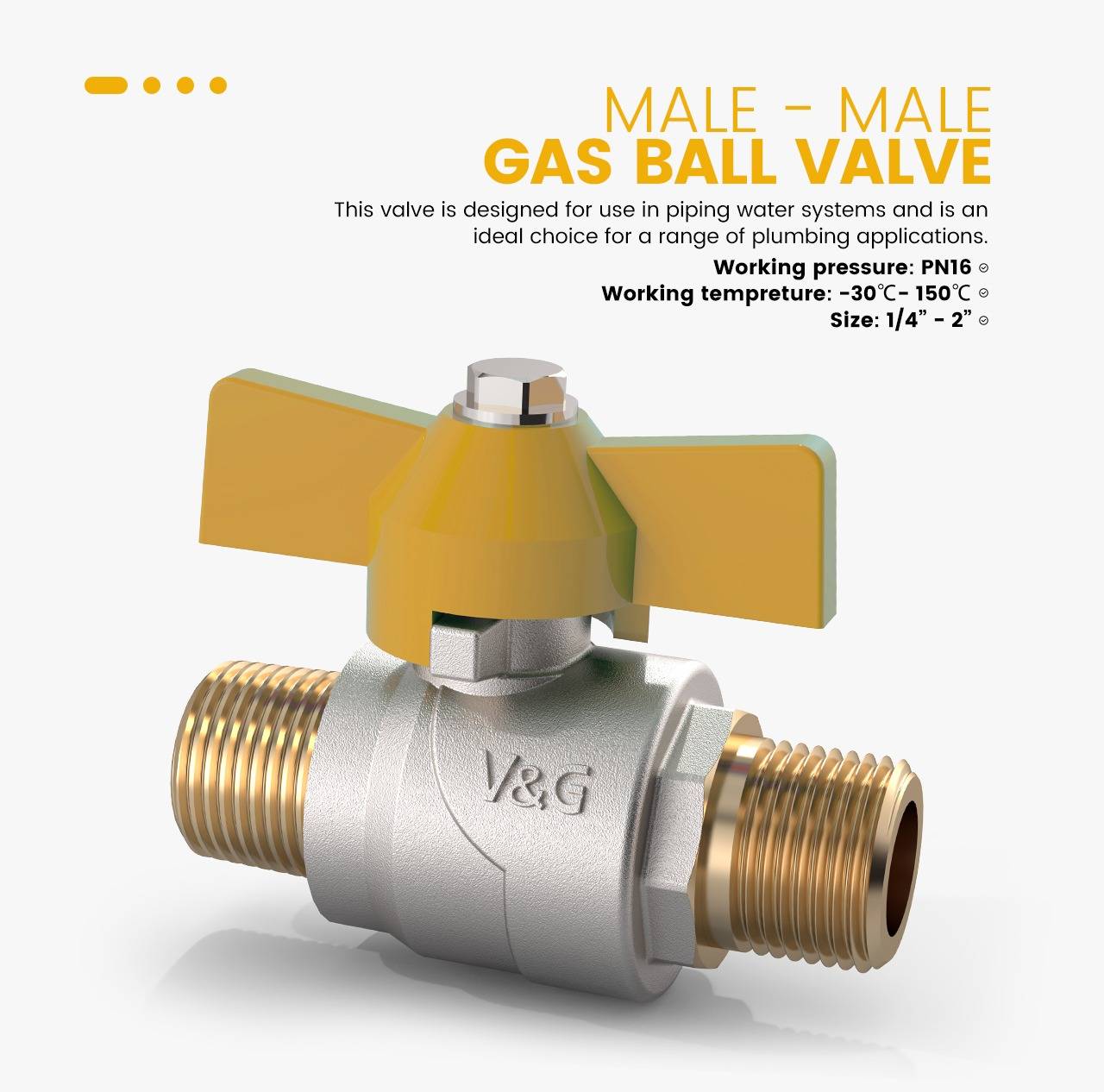

Introducing a reliable and versatile DVGW valve which is designed for use in piping water systems and is an ideal choice for a range of plumbing applications

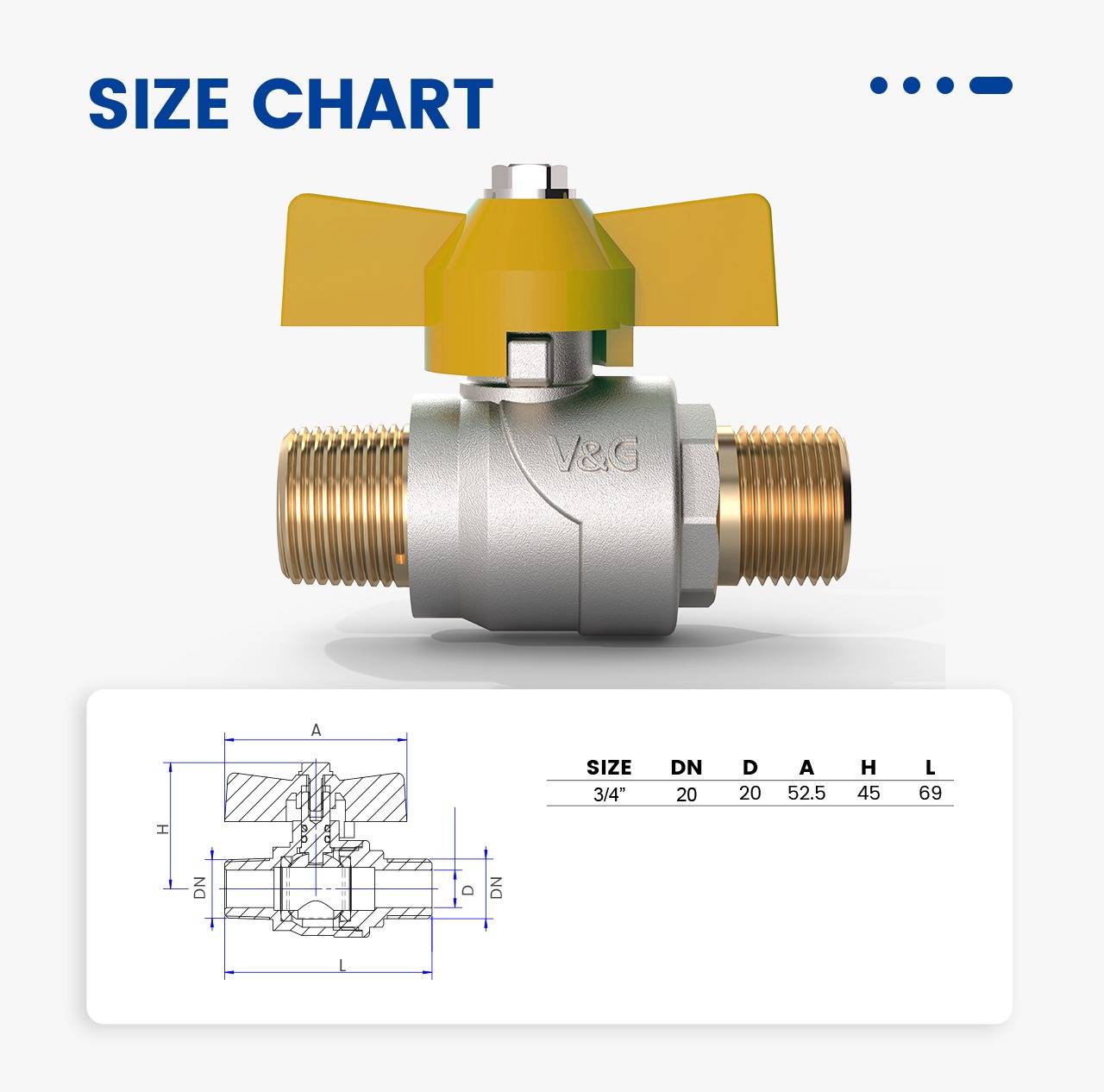

This water ball valve is available in a size range from 1/4″ to 1″, catering to different installation requirements. Its compact and streamlined design allows for easy integration into water and heating systems, making it suitable for residential and commercial settings.
Equipped with male-to-male threads, this water ball valve ensures secure and leak-free connections. The male threads enable compatibility with corresponding female threads in the piping system, ensuring a reliable and efficient connection.
Designed to withstand a wide temperature range from -20°C to 120°C, this water ball valve is suitable for both low and high-temperature applications. It can handle a working pressure of PN40, demonstrating its integrity and reliability even under high-pressure conditions.
|Material||Lead,Brass||Valve Type||Ball Valve|
|Brand||Midline Valve||Working medium||Water|
|Item Dimensions LxWxH||1/4″ to 1″||Nominal pressure:||PN40|
|Exterior Finish||Brass||Working Temperature:||-20 c|
|Inlet Connection Type||Full port||Material:||Brass|
|Specification Met||CSA||Thread:||Female Thread,apply to GB/T12230 standard|
