Gas Valve EN331 Approved

Item Number : VG10.33151

Variations:

No results found.

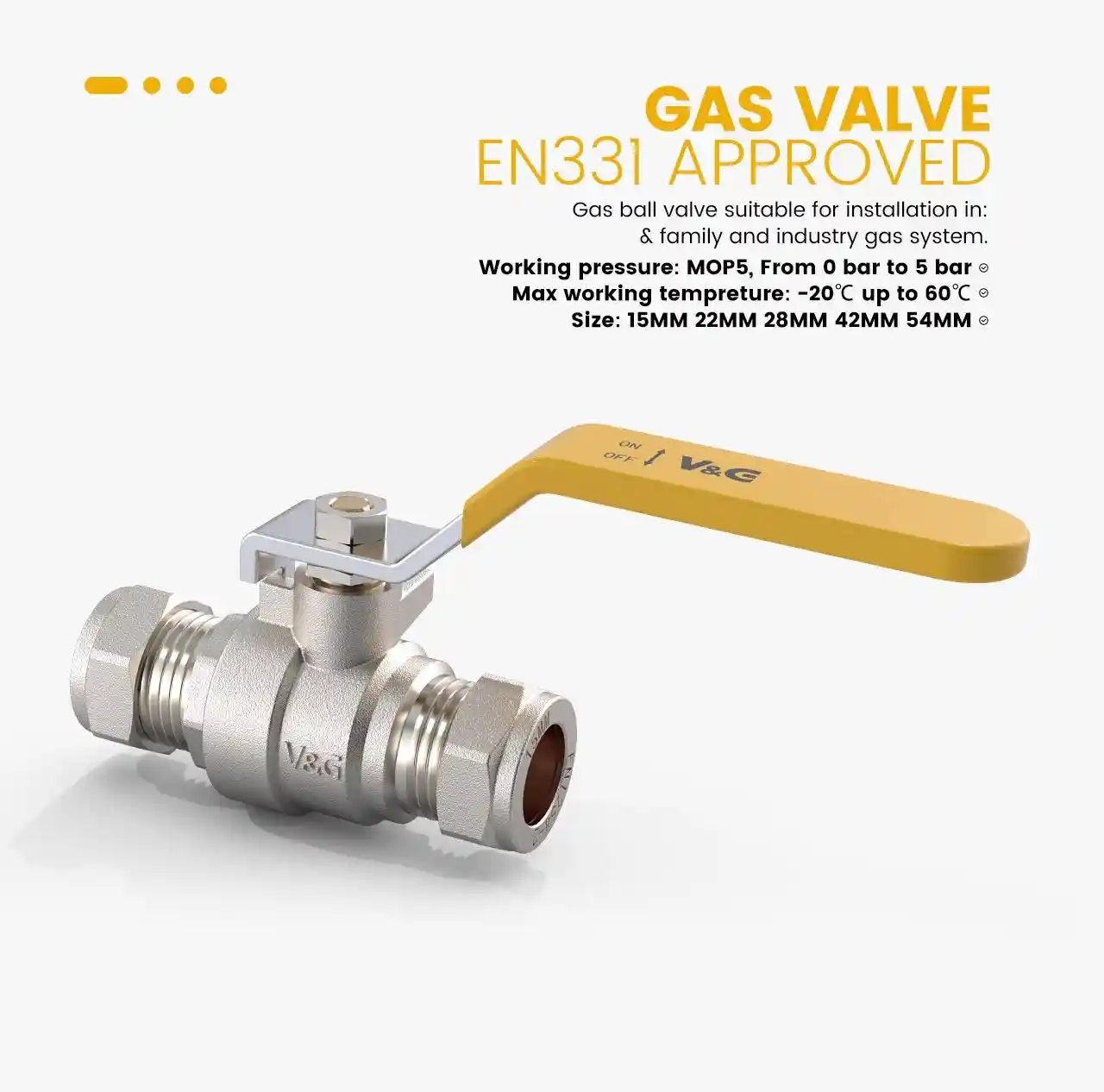

The provided information pertains to a gas ball valve that has been approved in accordance with the EN331 standard.

Size and Shape:

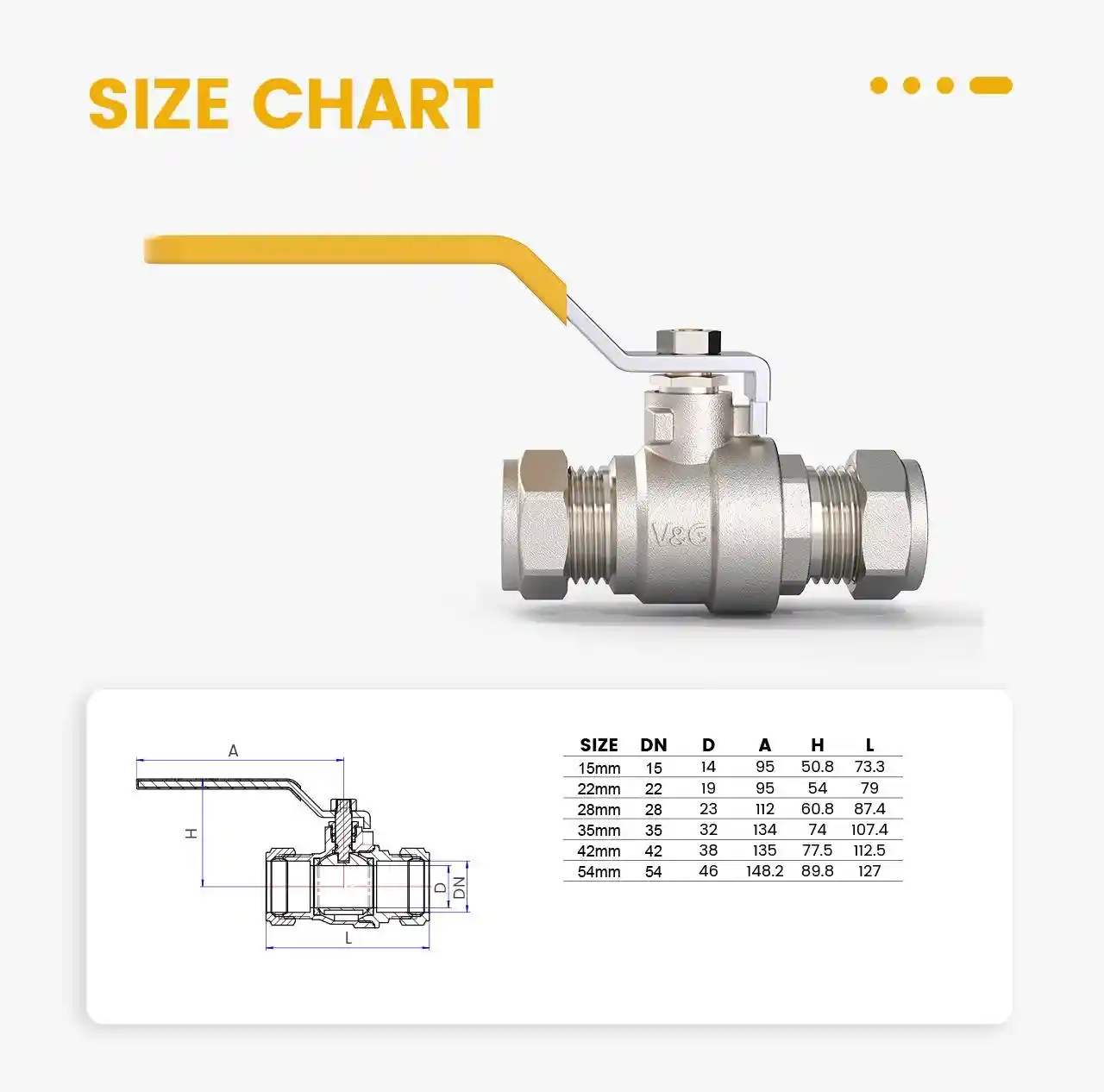

The gas ball valve comes in multiple size options to accommodate various piping requirements. The available sizes are 15MM, 22MM, 28MM, 42MM, and 54MM.

Threads:
The information does not provide explicit details about the threading of the valve. Typically, gas valves are equipped with threads that allow them to be connected to the corresponding threaded fittings or pipes within the gas system.

Temperature and Pressure Range:

The gas ball valve is designed to handle a maximum operating pressure (MOP5) of up to 5 bar. The valve is suitable for use within a temperature range of -20°C (minus 20 degrees Celsius) up to 60°C (60 degrees Celsius).

+86 576 8742 8589

Quick Dispatch & Fast Delivery

The provided information describes a gas ball valve that has received EN331 approval, signifying its compliance with relevant safety and performance standards. This Gas Valve EN331 Approved is intended for use in both residential (family) and industrial gas systems, where precise control of gas flow is essential.

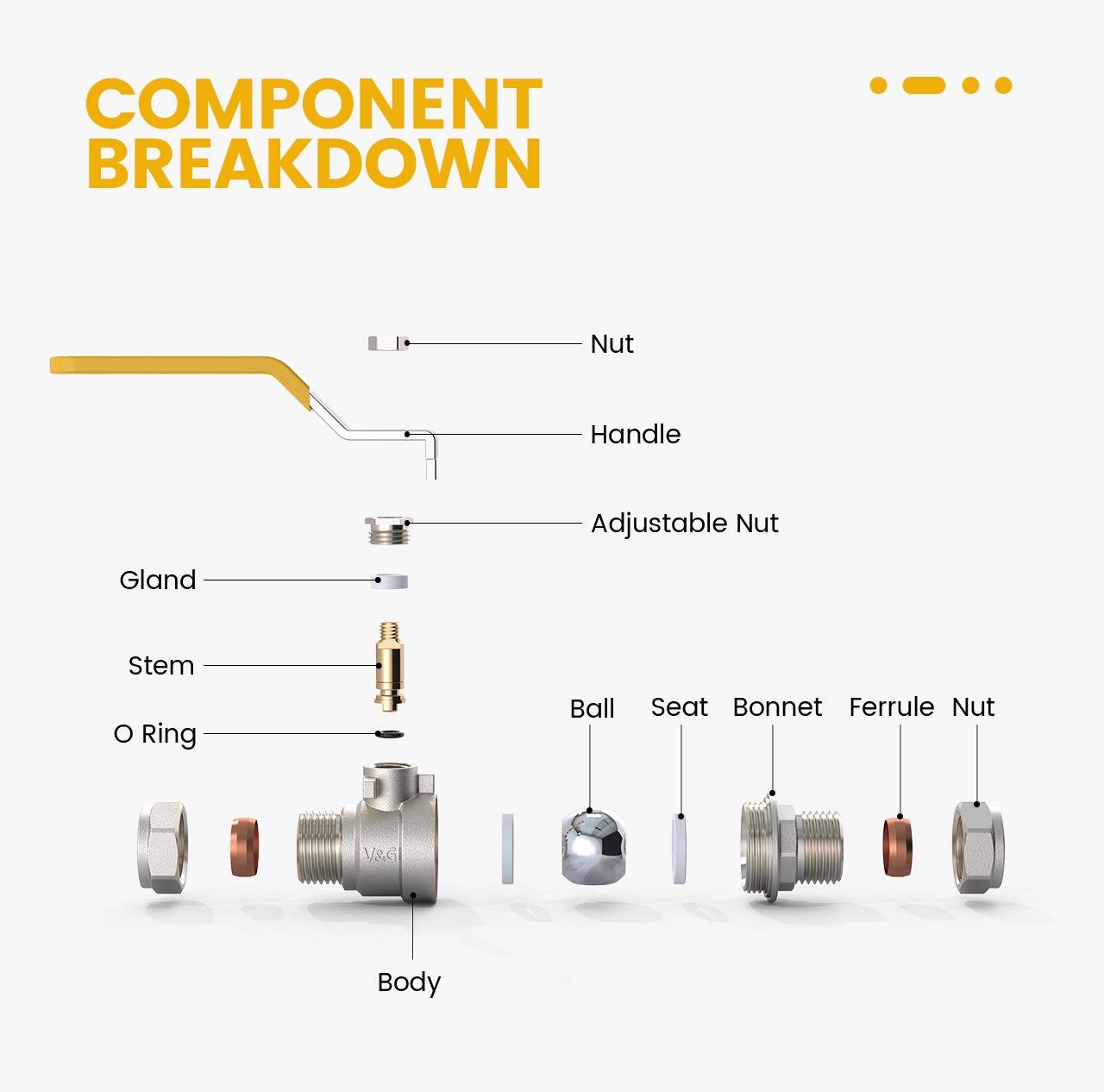

In terms of its physical characteristics, the gas ball valve follows the conventional design of a spherical ball valve, which allows for accurate control of gas flow by rotating the ball inside the valve. It is available in various sizes: 15MM, 22MM, 28MM, 42MM, and 54MM. These size options cater to different pipe diameters, ensuring compatibility with various gas system configurations.

While the information does not specify the type of threading used, gas valves typically come with threads that enable them to connect to corresponding threaded fittings or pipes within the gas system. The specific threading type (e.g., BSP or NPT) is crucial for compatibility during installation.

Regarding its operational parameters, the valve is designed to handle a maximum operating pressure (MOP5) of up to 5 bar. This means it can effectively regulate gas flow within systems operating within a pressure range from 0 bar (no pressure) up to a maximum of 5 bar. Furthermore, it is suitable for use within a temperature range of -20°C (minus 20 degrees Celsius) up to 60°C (60 degrees Celsius). This temperature range covers typical conditions for both indoor and outdoor gas systems.
