Gas Valve for Brazil, Angled shape, Male/Male

Item Number : VG10.90471

Variations:

No results found.

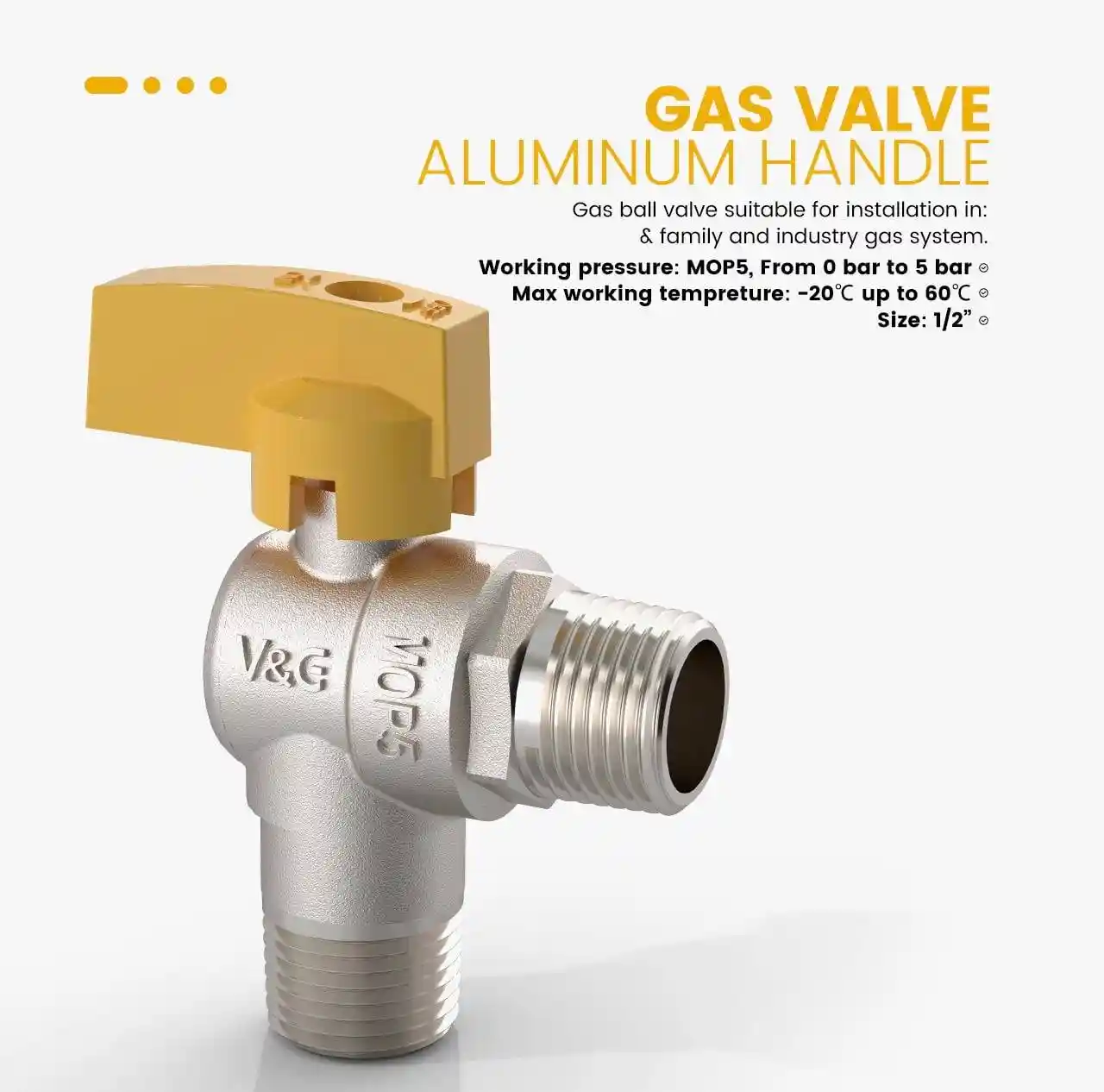

The Brazil Gas Valve MOP5 is a top-quality gas valve produced by Valogin, suitable for use in a variety of gas systems in both residential and industrial settings.

Size and Shape:

The Brazil Gas Valve MOP5 has a size of 1/2″, this gas valve features female/male threads that conform to both ISO 228 and ISO7/1 Rp parallel standards. Additionally, it features an aluminum handle for easy operation and a body surface treatment that is nickel-plated for enhanced durability.

Threads:

The threads of this gas valve conform to ISO 228 and ISO7/1 Rp parallel standards, making it compatible with a wide range of fittings and accessories. These threads are suitable for both female and male connections.

Temperature and Pressure Range:

The Brazil Gas Valve MOP5 is designed to work in a temperature range of +120°C to -20°C and a working pressure range for gas from 0 to 5 bar. This makes it suitable for use in a wide range of gas systems.

+86 576 8742 8589

Quick Dispatch & Fast Delivery

Introducing the Brazil Gas ball Valve angle shape MOP5, produced by Valogin, a high-quality Gas ball Valve angle suitable for both industrial and household applications. This valve is designed to meet the EN331 standard and features female/male threads that conform to both ISO 228 and ISO7/1 Rp parallel standards, making it compatible with a wide range of fittings and accessories. The valve is equipped with an aluminum handle for easy operation and a nickel-plated body surface treatment for maximum durability.

With a size of 1/2″, this gas valve is capable of withstanding a working pressure range of 0-5 bar. A minimum and maximum working temperature of +120°C for gas systems. The heavy series construction of this valve ensures reliable performance in harsh conditions. Whether you need to control the flow of gas in an industrial or household setting. The Brazil Gas Valve MOP5 provides reliable and safe operation.

Specifications

MaterialLead,BrassValve TypeBall Valve
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH2.5 x 0.75 x 0.75 inchesNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleButterfly

Video

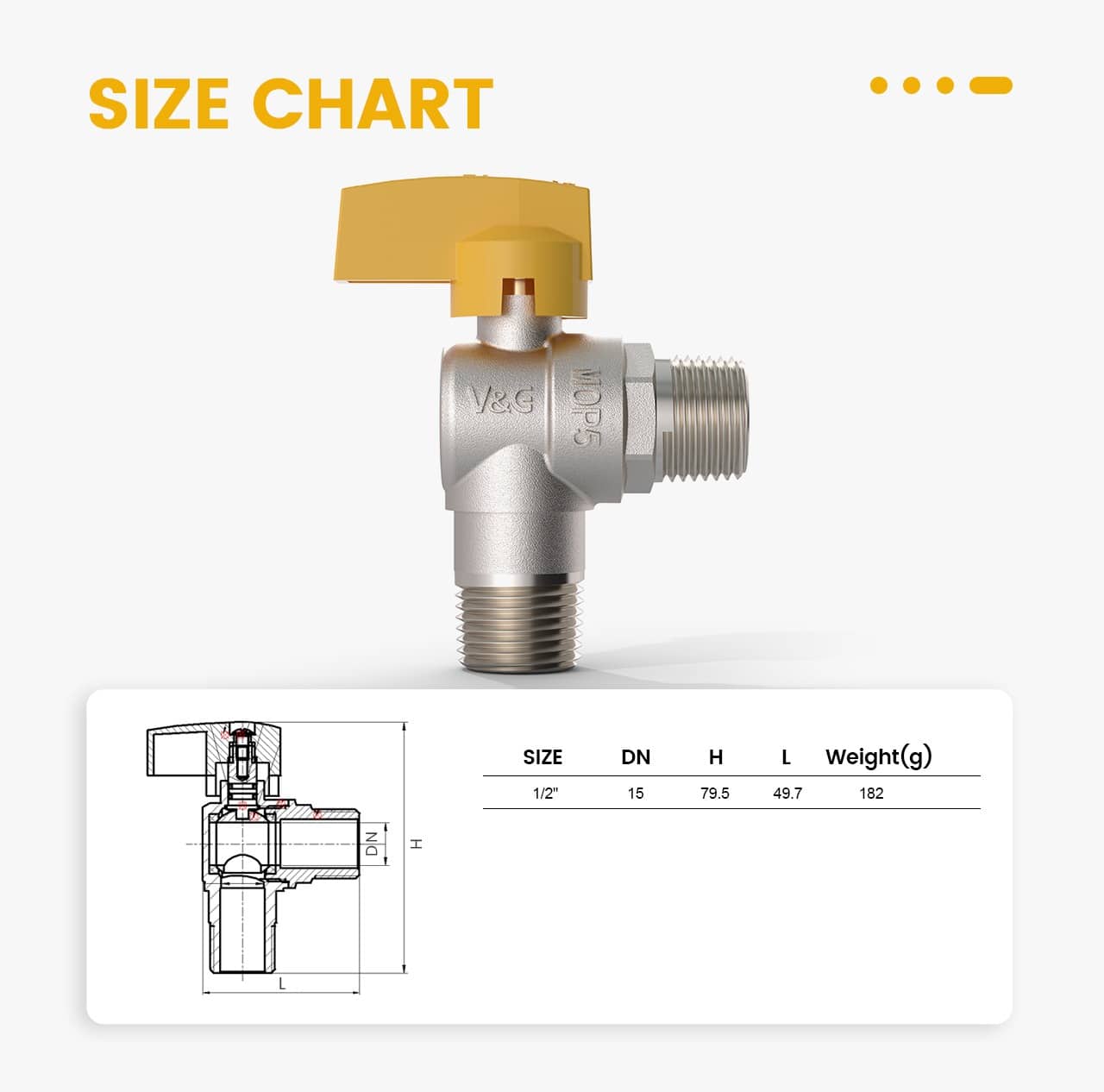

Drawing





Catalog





Product Markets

Certified by
