Gas Valve for Brazil, Male/Male, Angle Shaped

The Brazil gas valve MOP5 produced by Valogin is a reliable and durable gas ball valve that is designed to meet high-quality standards. This valve is ideal for controlling the flow of gas in various industrial and commercial applications.

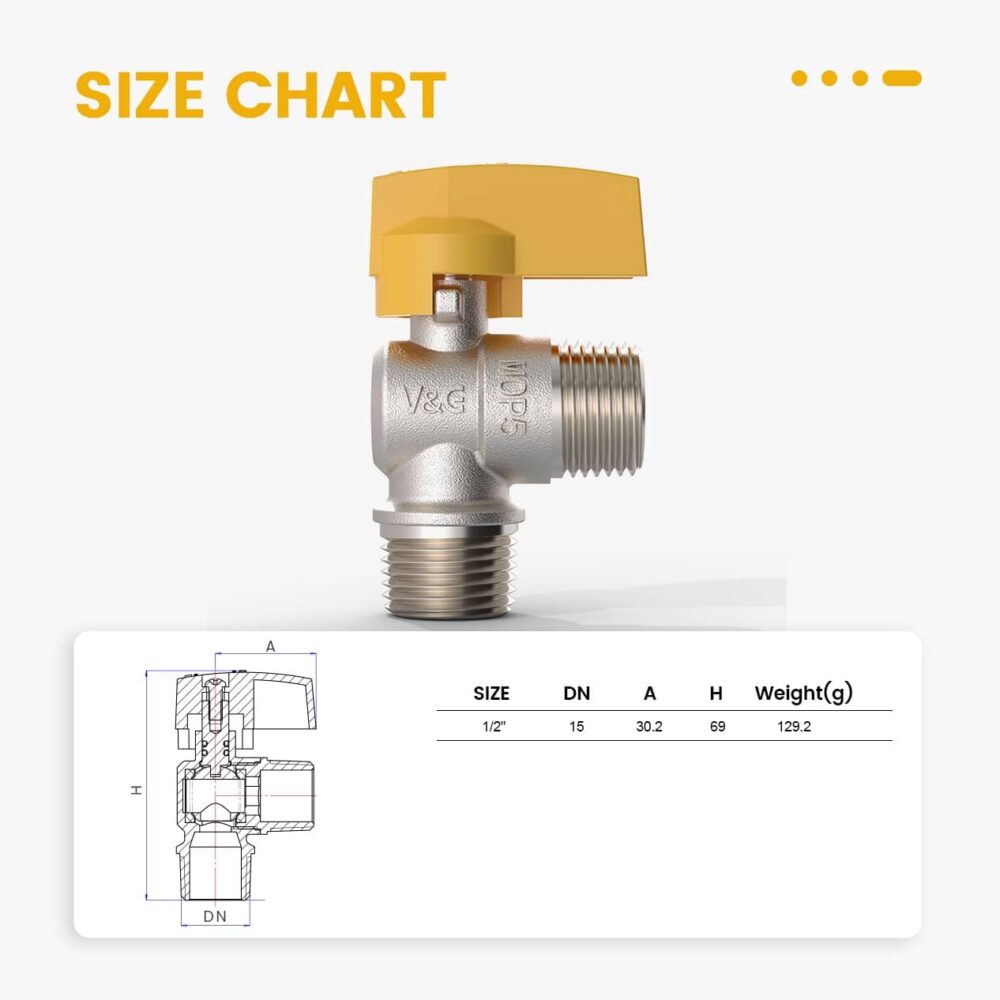

Size and Shape:

With a size of 1/2″ and a heavy series design. It features male/male threads and an aluminum handle that allows for easy operation and installation. Additionally, the body surface treatment is nickel-plated.

Threads:

The Brazil gas valve MOP5 features two thread types that ensure compatibility with various pipe systems. These include ISO 228, which is equivalent to DIN EN ISO 228 and BS EN ISO 228, and ISO7/1 Rp parallel, which is equivalent to DIN EN 10226-1 and BS EN 10226-1.

Temperature and Pressure Range:

This gas valve has a working temperature range of +60°C and a working pressure range of 0 to 5 bar for gas. These specifications make it suitable for use in various gas applications, including industrial and commercial heating systems.

Email Us?

sales62@valogin.com

Whatsapp

+86 158 88600153

Need help?

+86 576 8742 8589

Quick Dispatch & Fast Delivery

Overview:

The Brazil Ball Valve Angled Shape produced by Valogin is a reliable and durable gas ball valve suitable for a wide range of gas applications. It is built with a heavy series body and comes with male/male threads. Making it easy to install in various gas systems. The valve is nickel-plated, which ensures that it is resistant to corrosion and other environmental factors, enhancing its longevity. The aluminum handle is designed to provide a comfortable grip, making it easy to operate the valve.

The Ball Valve Angled Shape conforms to EN331 standards, ensuring its safety and efficiency in gas applications. The valve is capable of withstanding a minimum and maximum working temperature for gas of +60°C, and a working pressure range of 0 to 5 bar. The valve’s threads are of two types: ISO 228 and ISO7/1 Rp parallel. Equivalent to DIN EN ISO 228 and BS EN ISO 228 and DIN EN 10226-1 and BS EN 10226-1 respectively. This valve is ideal for use in commercial and industrial gas systems.
