Gas Valve for Brazil, Single Nozzle type

Item Number : VG10.90491

The Brazil gas valve MOP5 produced by Valogin is a reliable and high-quality gas ball valve that is designed for use with natural gas and LPG systems. With heavy-duty construction and precise engineering.

Size and Shape:

This gas ball valve features a 1/2″ size and a male/male thread connection. It is designed in compliance with the EN331 standard and features a nickel-plated body surface treatment for added corrosion resistance.

Threads:

The gas ball valve features two thread types, including ISO 228 and ISO7/1 Rp parallel. These threads are equivalent to DIN EN ISO 228, BS EN ISO 228, DIN EN 10226-1, and BS EN 10226-1.

Temperature and Pressure Range:

The valve is suitable for use in temperatures ranging from +120°C to ambient temperatures and has a working pressure for gas of 0 to 5 bar. It is designed to withstand heavy-duty usage and provide reliable, long-lasting performance.

+86 576 8742 8589

Quick Dispatch & Fast Delivery

Overview:

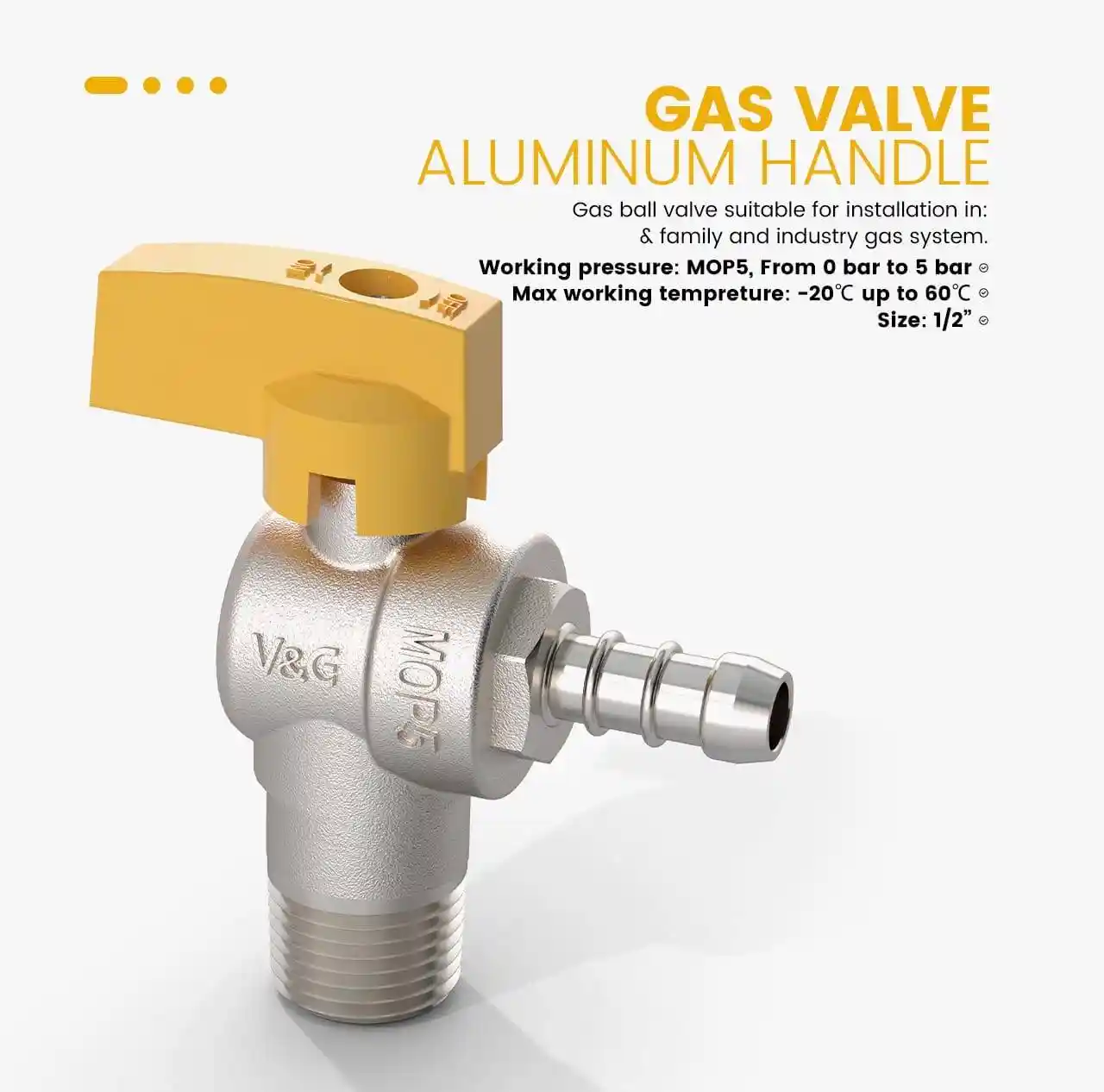

The Brazil Gas Ball Valve single Nozzle produced by Valogin is a high-quality gas ball valve designed to control the flow of gas in various industrial and commercial applications. This valve has a compact size of 1/2″ and is manufactured according to EN331 standards, ensuring maximum safety and durability. The valve features male/male threads that allow for easy installation and an aluminum handle for a comfortable grip during operation. The body surface is treated with nickel plating,

Which not only adds an aesthetic appeal but also prevents rust and corrosion, ensuring longevity. Additionally, this valve can withstand minimum and maximum working temperatures of up to +120°C. The working pressure for gas ranges from 0 to 5 bar. Making it suitable for use in a wide range of environments. The heavy series Ball Valve single Nozzle also features thread types of ISO 228 and ISO7/1 Rp parallel. Making it a versatile valve option for various gas systems.

Specifications

MaterialLead,BrassValve TypeBall Valve
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH2.5 x 0.75 x 0.75 inchesNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleButterfly

Video

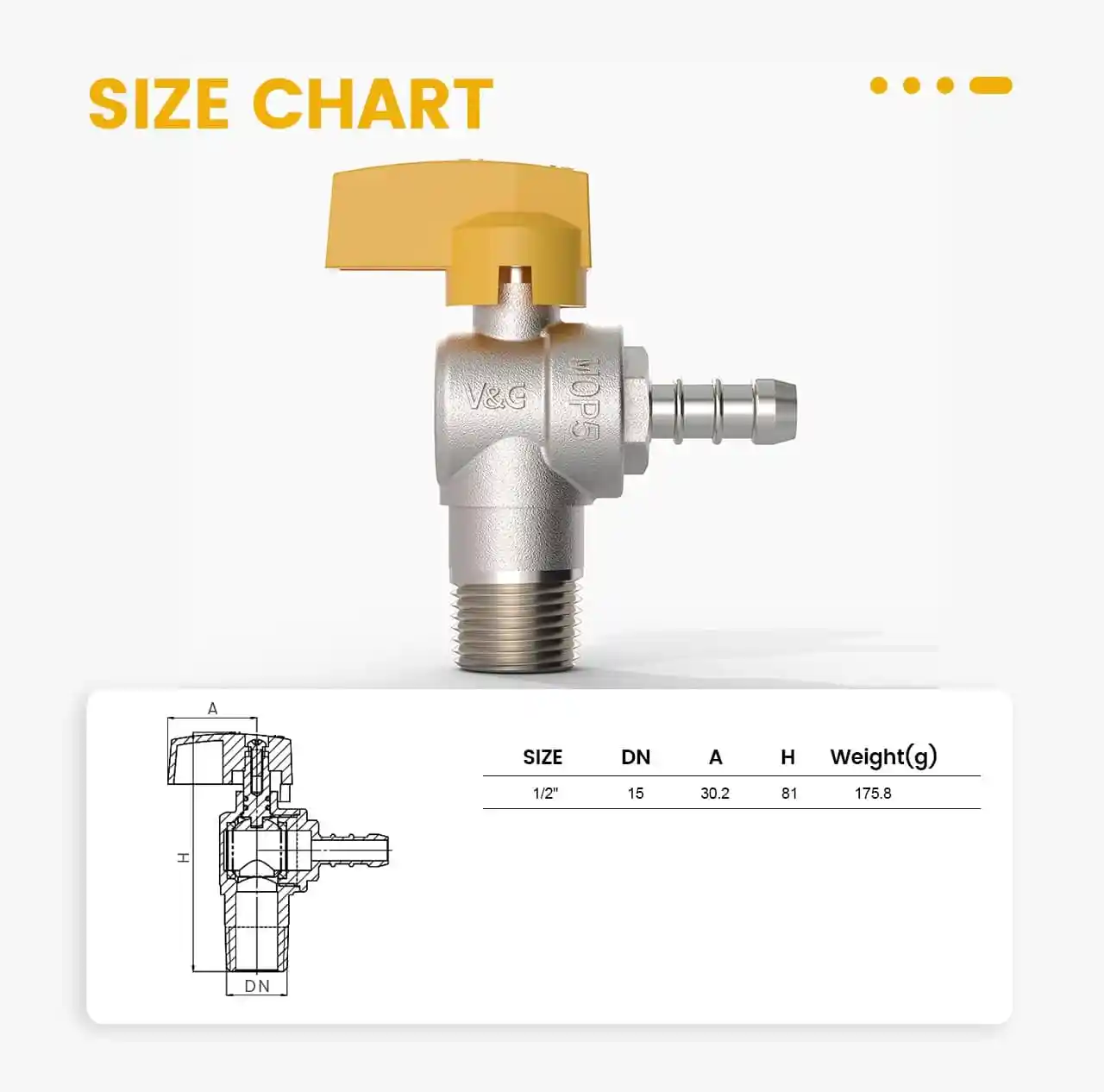

Drawing
