GATE VALVE

Item Number : VG-10502

The Gate Valve is an essential component in pipeline systems, primarily designed for shut-off applications. It plays a crucial role in water supply systems.

Size and Shape:

It is manufactured in sizes ranging from 1/2″ to 2″. The valve features a robust and durable construction with components made from high-quality materials, such as brass, aluminum, and EPDM.

Threads:

The WRAS Approved Gate Valve is equipped with female threads, which provide a secure and leak-resistant connection in pipeline systems.

Temperature and Pressure Ranges:

It can function effectively in temperatures ranging from -20°C to +120°C, ensuring its adaptability in both cold and hot conditions. It has a pressure range of 2.5 MPa, allowing it to handle a significant amount of pressure within the specified limits.

The WRAS Approved Gate Valve serves as a crucial component within pipeline systems, specifically designed for shut-off purposes in various applications such as water supply, household drinking water, and heating systems. This versatile valve, available in sizes ranging from 1/2″ to 2″, is meticulously constructed with durable materials like brass, aluminum, and EPDM. Its use of female threads ensures secure and leak-resistant connections, contributing to its ease of installation and versatility. This gate valve is engineered to operate within a temperature range of -20°C to +120°C and can withstand pressures up to 2.5 MPa, making it suitable for a wide array of environments and ensuring efficient pressure control. Compliant with WRAS standards, it provides reliability and assurance of adherence to water regulations.

Crafted from robust and high-quality materials like brass, aluminum, and EPDM, the gate valve stands out for its durability and longevity. The presence of female threads further enhances its utility by facilitating secure and leak-resistant connections, instilling confidence in its performance. Moreover, the valve is engineered to function efficiently within a temperature range spanning from -20°C to +120°C, allowing it to operate flawlessly in both extremely cold and hot conditions. With a commendable pressure range of 2.5 MPa, it excels in situations demanding precise pressure control, making it particularly suitable for mission-critical applications within the realm of water supply and heating systems. Its compliance with WRAS standards ensures that it not only meets but exceeds the rigorous regulatory requirements, underlining its reliability and adherence to water regulations.

Specifications

MaterialLead,BrassValve TypeBall Valve
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH2.5 x 0.75 x 0.75 inchesNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleButterfly

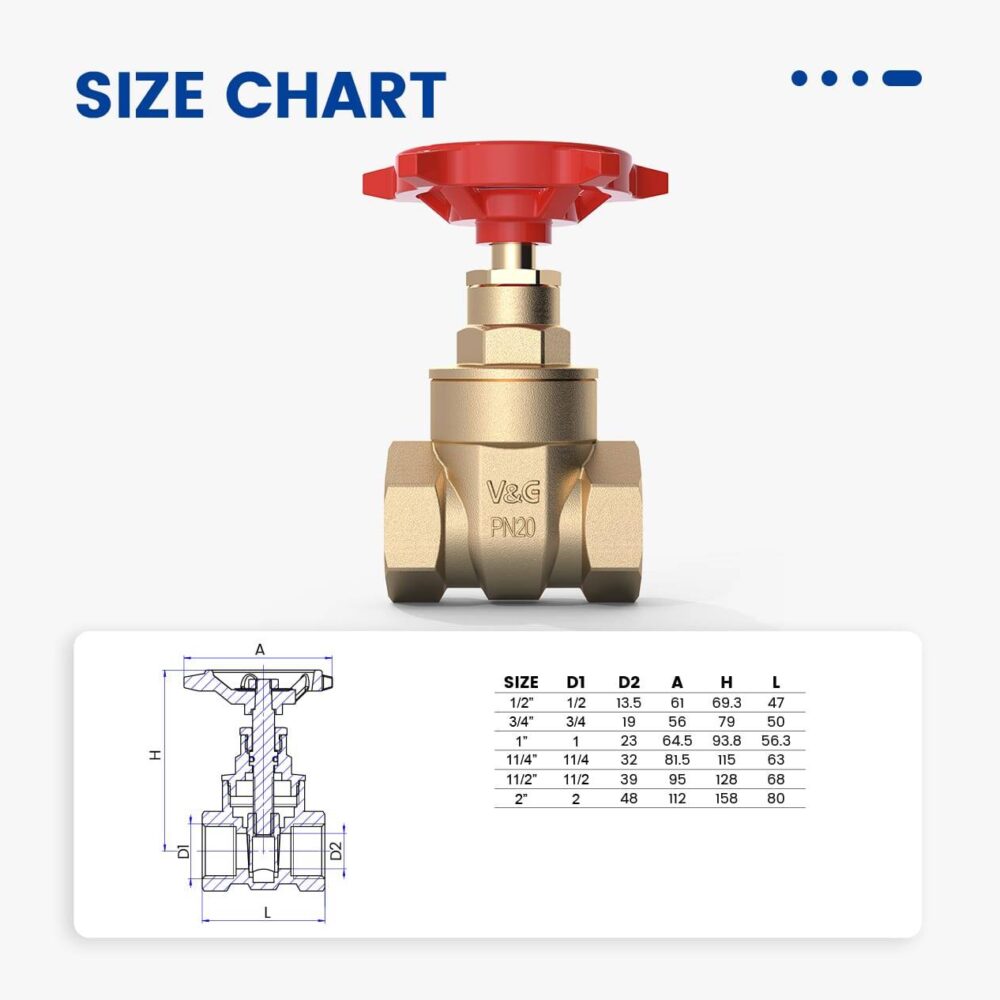

Drawing

Catalog

Packaging Details

Vendor CodeSizeWeightQty per boxQty per packAvailabilityQty per pack
VG-1011011/2"16328 pcs.-in stock50
VG-101333/4"16328 pcs.-in stock50
VG-101331"16328 pcs.-in stock
VG-1013311/4"16328 pcs.-in stock
VG-1013311/2"16328 pcs.-in stock
VG-10133216328 pcs.-in stock
