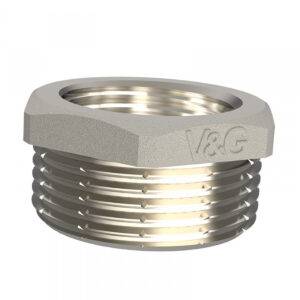

Hexagonal Bushing FxM (Gulf)

Item Number : VG.206101

Hexagonal bushing FxM fittings are commonly used in water distribution systems to redirect the flow of water in different directions. These fittings play a crucial role in plumbing installations, allowing for the connection and disconnection of pipes with ease.

Size and Shape:

Hexagonal bushing FxM fittings come in various sizes to accommodate different pipe diameters. The size refers to the outer diameter (OD) of the male thread and the inner diameter (ID) of the female thread.

Threads:

The threads on the hexagonal bushing FxM fitting are essential for creating a reliable and leak-proof joint between pipes. The male thread is located on the external side of the fitting, while the female thread is present on the internal side.

Temperature and Pressure Range:

This material allows the fittings to withstand a wide range of temperatures and pressures commonly encountered in water distribution systems. The exact temperature and pressure range may vary depending on the specific manufacturer and the pipe’s material.

MaterialLead,BrassValve TypeHexagonal Bushing
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxHMediumNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleNo Handle
