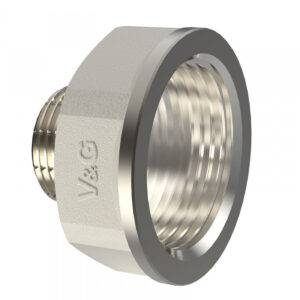

Hexagonal Extension (Gulf)

Item Number : VG.208101

Hexagonal Extension Fittings are essential components used in water distribution systems to redirect the flow of water and change its direction.

Size and Shape:

Hexagonal Extension Fittings come in various sizes and shapes to accommodate different pipe diameters and configurations. The size of the fitting is determined by the outer diameter (OD) of the male thread and the inner diameter (ID) of the female thread.

Threads:

The threaded joints of Hexagonal Extension Fittings are crucial for creating secure and leak-proof connections in the plumbing system. These fittings follow the ISO 228 standard, which is equivalent to DIN EN ISO 228 and BS EN ISO 228.

Temperature and Pressure Range:

The specific temperature and pressure range that Hexagonal Extension Fittings can handle may vary depending on the manufacturer and the materials used in the pipes being connected. It is important to consult the manufacturer’s guidelines and specifications to ensure that the fittings are suitable for the intended application and operating conditions.

Hexagonal Extension Fittings are widely used in water distribution systems to change the direction of water flow. These fittings are essential components that play a crucial role in plumbing installations. They enable alterations in the water distribution pattern and ensure efficient water flow throughout the system. Hexagonal Extension Fittings are designed to connect pipes and allow for easy disconnection when needed. Their primary purpose is to redirect the flow of water in another direction, providing flexibility in designing and managing plumbing systems.

These fittings come in various sizes and shapes to accommodate different pipe diameters and configurations. The size of the fitting is determined by the outer diameter of the male thread and the inner diameter of the female thread. This range of sizes ensures compatibility with a wide range of piping systems and allows for the redirection of water flow at specific points in the network. The hexagonal shape of the fitting makes it easy to grip and tighten using a wrench or similar tools, facilitating the installation and maintenance processes.

Specifications

MaterialLead,BrassValve TypeBall Valve
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH2.5 x 0.75 x 0.75 inchesNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleButterfly
