RUBBER DISC GATE VALVE

Item Number : ART.VG11.11302

The Rubber Disc Gate Valve is a reliable and essential component designed for use in drinkable water and piping water systems. Its primary function is to control the flow of water, ensuring efficient and precise regulation.

Size and Shape:

The gate valve is available in a size range of 1/2″ to 2″, offering versatility and compatibility with various pipe sizes commonly found in drinkable water and piping water systems.

Threads:

The gate valve features ISO 228 threads, which are equivalent to DIN EN ISO 228 and BS EN ISO 228 standards. These standardized threads ensure secure and reliable connections between the valve and compatible pipes or fittings.

Temperature and Pressure Range:

The gate valve is designed to operate within a temperature range of 0°C to 80°C, making it suitable for both cold and moderately hot water applications. With a working pressure rating of PN16, the valve can withstand a maximum working pressure of 16 bar.

+86 576 8742 8589

Quick Dispatch & Fast Delivery

The Rubber Disc Gate Valve is an essential component designed specifically for drinkable water and piping water systems, ensuring reliable flow control and system integrity. Available in a size range of 1/2″ to 2″, this valve offers versatility and compatibility with different pipe sizes commonly found in water systems. Its body in a brass color not only provides durability but also adds a touch of elegance to the overall appearance. The handle, made of nylon, offers a comfortable grip for smooth operation, making flow regulation effortless.

Featuring ISO 228 threads, which are equivalent to DIN EN ISO 228 and BS EN ISO 228 standards, this Rubber Disc Gate Valve guarantees secure and leak-free connections. The standardized threads facilitate easy installation and compatibility with a variety of plumbing systems, promoting seamless integration within the water supply network. With the use of ISO 228 threads, users can confidently connect the valve to pipes or fittings, ensuring a tight and reliable seal without the risk of water leakage.

Video

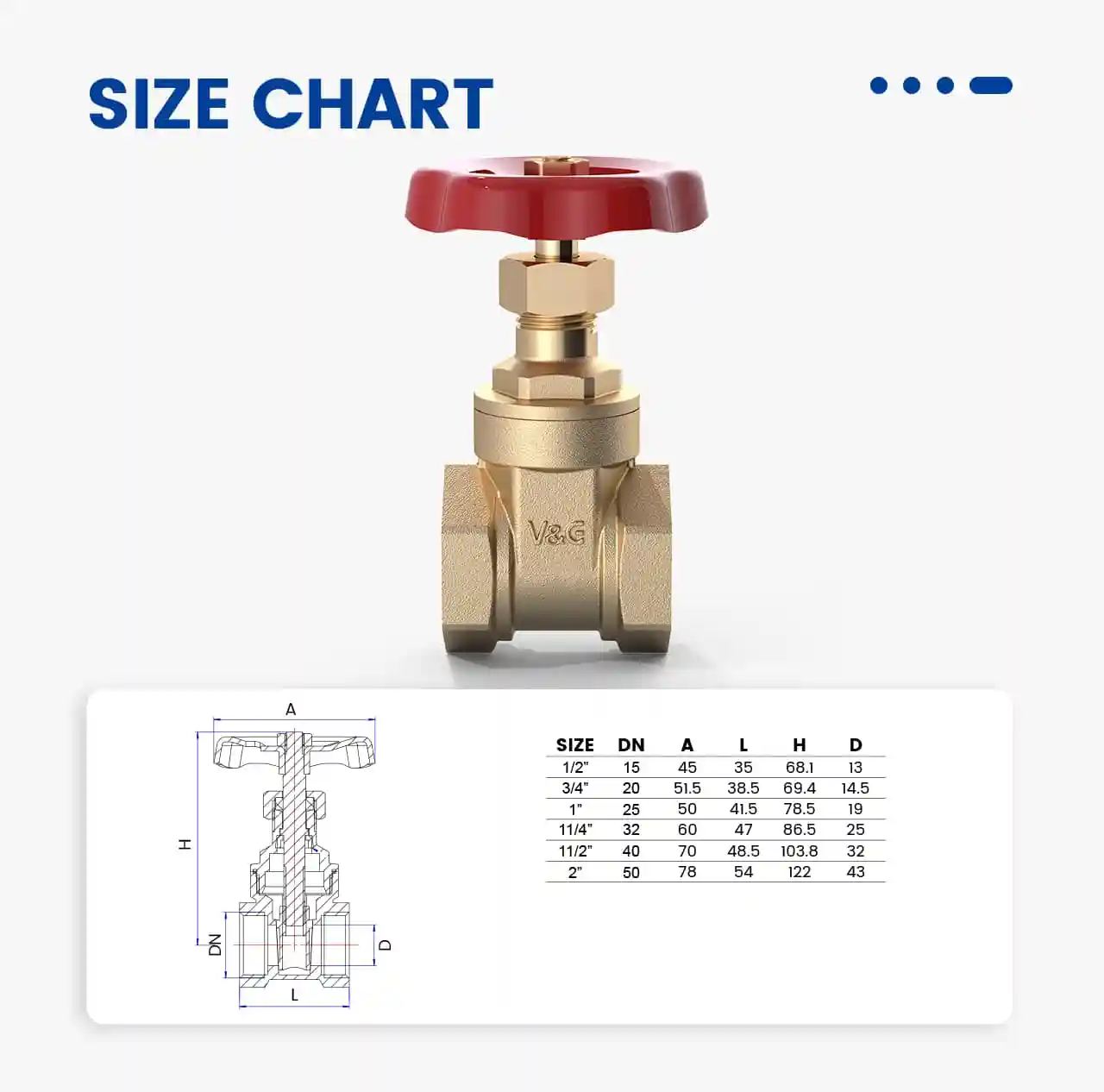

Drawing
