Brass Swing Spring Check Valve

Item Number : VG-04053

The Spring Check Valve is an essential component designed for preliminary cleaning of mechanical impurities in a variety of domestic and drinking water supply systems.

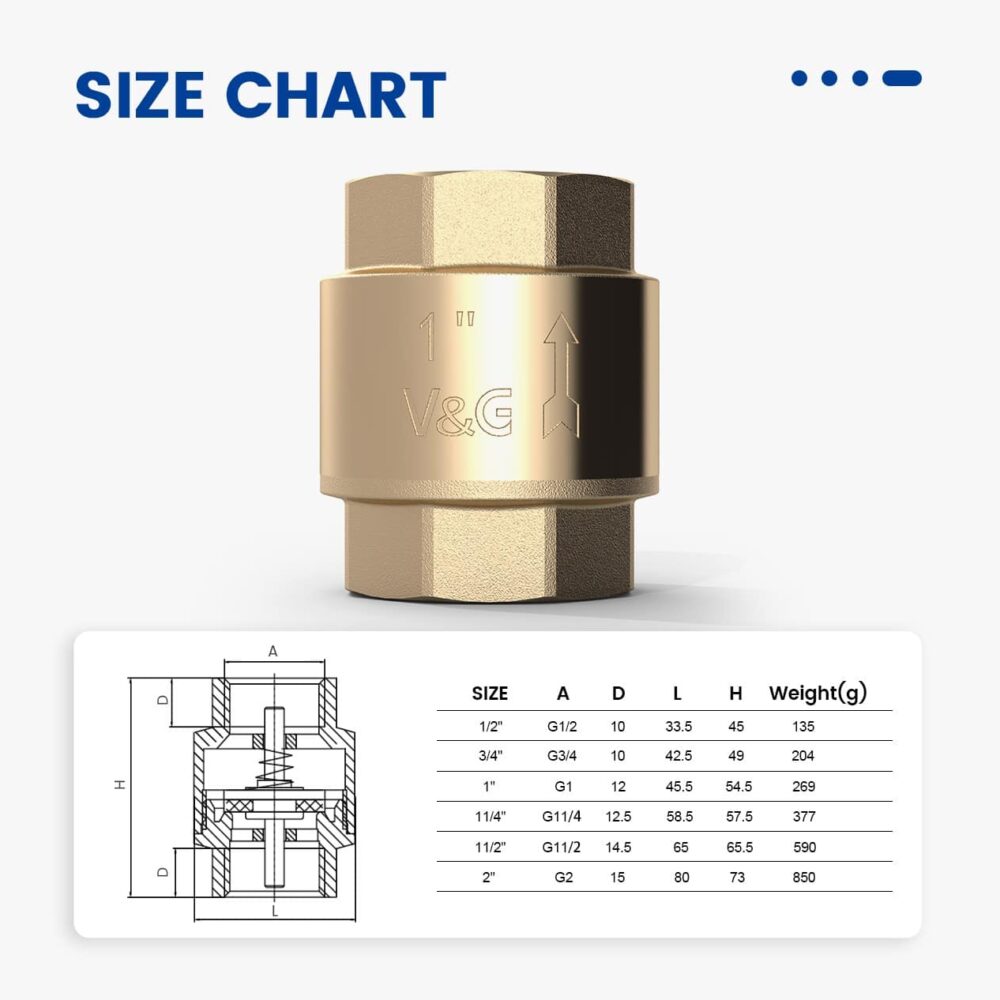

Size and Shape:

It comes in the following sizes: 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, and 2″. These size options provide flexibility for users to select the appropriate valve that fits their specific plumbing or fluid transport needs.

Threads:

The valve features a connection thread FxF conforming to ISO 228 standards. These threads are parallel, which means they are designed for a secure and tight fit when connecting the valve to the piping system.

Temperature and Pressure Ranges:

It can handle temperatures ranging from 20°C to +120°C, making it suitable for applications where the fluid temperature can vary considerably. Additionally, the valve is capable of withstanding pressures up to 2.5 MPa.

MaterialLead,BrassValve TypeCheck Valve
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, and 2″Nominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleMain

Video

Drawing

Catalog

Packaging Details

Vendor CodeSizeWeightQty per boxQty per packAvailabilityQty per pack
VG-1011011/2"16328 pcs.-in stock50
VG-101333/4"16328 pcs.-in stock50
VG-101331"16328 pcs.-in stock
VG-1013311/4"16328 pcs.-in stock
VG-1013311/2"16328 pcs.-in stock
VG-10133216328 pcs.-in stock
