Water Ball Valve – Butterfly Handle – FXF Thread

Item Number : VG10.89931

This valve offers reliable and efficient control of fluid flow and is suitable for use in piping water systems that adhere to EN13828 standards.

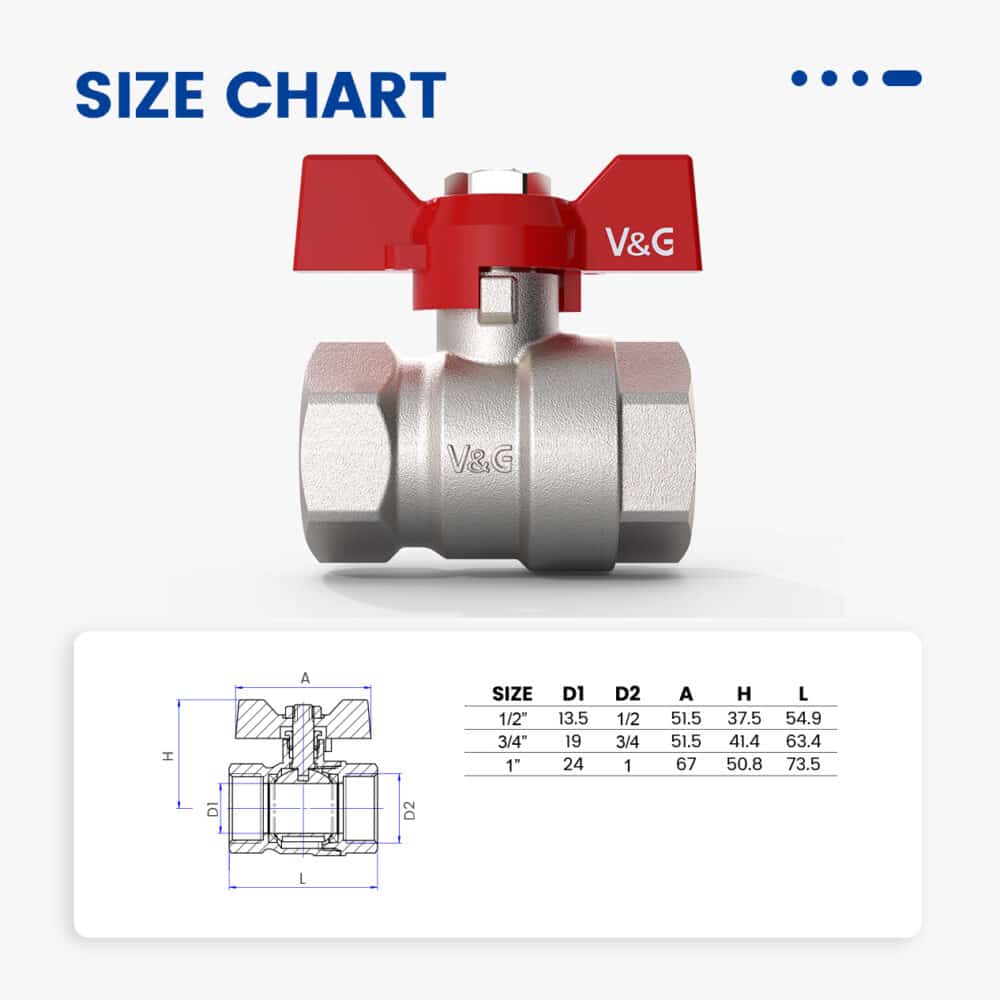

Size and Shape:

The Butterfly Ball Valve FxF V&G Optima has a standard passage and is available in sizes ranging from 1/2″ to 2″. The valve body is constructed of nickel-plated steel and features a steel lever handle, providing a sturdy and durable design.

Threads:

The valve features female-female threads, conforming to ISO 228 standards, which are equivalent to DIN EN ISO 228 and BS EN ISO 228. This ensures compatibility with a wide range of piping systems, making installation fast and easy.

Temperature and Pressure Range:

The Butterfly Ball Valve FxF V&G Optima is suitable for use in a wide range of operating temperatures, with a working temperature range of -20°C to 150°C. The valve can withstand a maximum working pressure of PN25.

+86 576 8742 8589

Quick Dispatch & Fast Delivery

Overview:

Introducing our high-quality Butterfly Ball Valve FxF valve, designed for reliable and efficient control of fluid flow in piping water systems, compliant with EN13828 standards. Our valve is perfect for use in standard passage piping systems. Ensuring optimal flow rate with minimal pressure drop.

With a working pressure of PN25, our valve is designed to withstand high pressures. It provides reliable performance even in high-pressure applications. The Butterfly Ball Valve FxF is also designed with ISO 228 threads. Which are equivalent to DIN EN ISO 228 and BS EN ISO 228 standards. Making it easy to install and compatible with a wide range of plumbing components.

With its reliable performance, durable construction, and easy installation. Our valve is the perfect choice for professionals and DIY enthusiasts alike who need a reliable and efficient way to control fluid flow in piping water systems. Upgrade your water system with our top-quality valve today.



Specifications

MaterialLead,BrassValve TypeBall Valve
BrandMidline ValveWorking mediumWater
Item Dimensions LxWxH2.5 x 0.75 x 0.75 inchesNominal pressure:MOP5
Exterior FinishBrassWorking Temperature:-20 c
Inlet Connection TypeFull portMaterial:Brass
Specification MetCSAThread:Female Thread,apply to GB/T12230 standard
Specification:DN15/20/25/32/40/50/65/80HandleButterfly
