Can gate valves be used for throttling?

Gate valves are well-known for their robust construction, reliable shut-off capabilities, and suitability for high-pressure applications. However, when it comes to throttling—adjusting the flow rate by partially opening or closing the valve—questions arise about the feasibility of using gate valves. In this blog post, we will delve into the topic and explore whether gate valves can effectively serve as throttling valves.

When it comes to on/off operations, gate valves excel because they allow full flow when completely opened and a tight shut-off when fully closed. However, it is difficult to produce precise and reliable throttling due to the linear flow characteristics and constrained control ranges of gate valves. These difficulties will be looked at, along with flow control precision, potential cavitation and erosion, and the range of control restrictions. We’ll also go through alternate valve designs that are specifically made for throttling, emphasizing their benefits for precise flow regulation. By the end, you will know whether gate valves are appropriate for throttling applications or if other options need to be taken into account.

Gate Valves: Robust Construction and On/Off Capabilities

Gate valves are widely recognized for their robust construction and excellent on/off capabilities. These valves are designed with a gate or wedge-shaped disk that moves up and down within the valve body to control the flow of fluid. When the gate is fully raised, the valve allows full flow, and when it is fully closed, it provides a tight shut-off, minimizing any leakage.

The robust construction of gate valves makes them suitable for handling high-pressure applications, ensuring durability and longevity even under demanding conditions. They are often preferred in industries such as oil and gas, water treatment, and manufacturing, where reliable shut-off is essential to prevent fluid leakage and maintain operational safety.

Gate valves are known for their low flow resistance when fully open, enabling efficient and high-flow rates. This characteristic makes them particularly advantageous in applications where maximizing flow capacity is crucial. When the gate valve is fully closed, it forms a tight seal, preventing any unwanted fluid passage, which is critical for safety and process integrity.

In summary, gate valves offer robust construction, efficient on/off operation, and reliable shut-off capabilities, making them suitable for applications where full flow or complete isolation is required.

Challenges of Throttling with Gate Valves

While gate valves excel in on/off applications, their suitability for throttling—precisely controlling the flow rate by partially opening or closing the valve—poses several challenges. Throttling requires the ability to make precise adjustments to the valve’s position to achieve the desired flow rate, which may not be achieved effectively with gate valves.

One challenge is the limited control range of gate valves. Small changes in the position of the gate can result in significant changes in the flow rate, making it difficult to achieve fine adjustments and precise control. This limitation can be problematic in applications where maintaining a specific flow rate is critical.

Another challenge is the flow control accuracy when gate valves are partially opened. The fluid passing through a partially open gate valve may experience turbulence, pressure drop, and potential damage to the valve and downstream equipment. This can lead to inefficiencies, unstable flow, and potential issues with system performance.

Additionally, throttling at high differential pressures can cause cavitation, where vapor bubbles form and collapse rapidly. Cavitation can result in erosion and damage to the valve and piping system. Gate valves may not handle these conditions as effectively as other valve types specifically designed for throttling, which can lead to reduced service life and increased maintenance requirements.

Understanding these challenges is crucial when considering the use of gate valves for throttling applications. It highlights the need to carefully evaluate the specific requirements of the application and consider alternative valve types that are better suited for precise flow modulation.

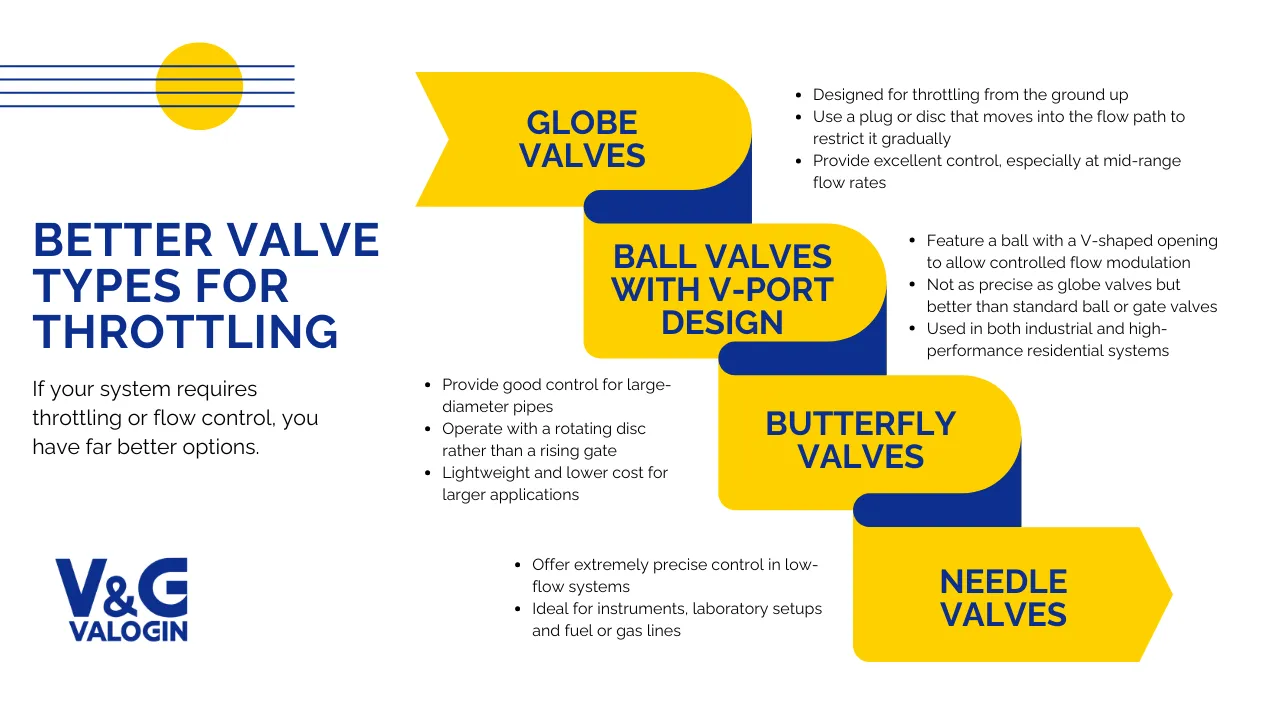

Exploring Alternative Valve Solutions for Precise Throttling Control

 Given the challenges associated with using gate valves for precise throttling control, it becomes essential to explore alternative valve solutions that are specifically designed for this purpose. Several valve types offer improved performance and greater accuracy in flow modulation:

Globe Valves: Globe valves are widely recognized for their excellent throttling capabilities. Their design features a globe-shaped body and a movable plug (disc) that can be positioned to control the flow rate. This design allows for more precise adjustments and a wider range of control compared to gate valves. Globe valves are commonly used in applications that require accurate flow control, such as HVAC systems, process industries, and power plants.

Butterfly Valves: Butterfly valves are another alternative for precise throttling control. These valves feature a disc that rotates within the valve body to regulate the flow. While primarily known for their quick and efficient on/off operation, certain designs of butterfly valves, such as high-performance and eccentric types, offer improved throttling capabilities. They provide better flow characteristics and control range, making them suitable for applications where moderate to precise throttling is required.

Ball Valves: Ball valves, particularly those with V-port or segmented ball designs, can also be utilized for throttling purposes. These valves feature a rotating ball with a V-shaped or contoured bore that allows for precise control over the flow rate. Ball valves are known for their reliability, low torque operation, and ability to handle high-pressure applications. They find applications in industries such as chemical processing, oil and gas, and water treatment.

The Conclusion

Gate valves, with their robust construction and excellent on/off capabilities, have proven to be reliable choices for applications requiring full flow or complete shut-off. However, when it comes to precise throttling control, gate valves face inherent limitations that can hinder their effectiveness. The challenges of limited control range, flow control accuracy, and potential issues with cavitation and erosion make it necessary to consider alternative valve solutions.
